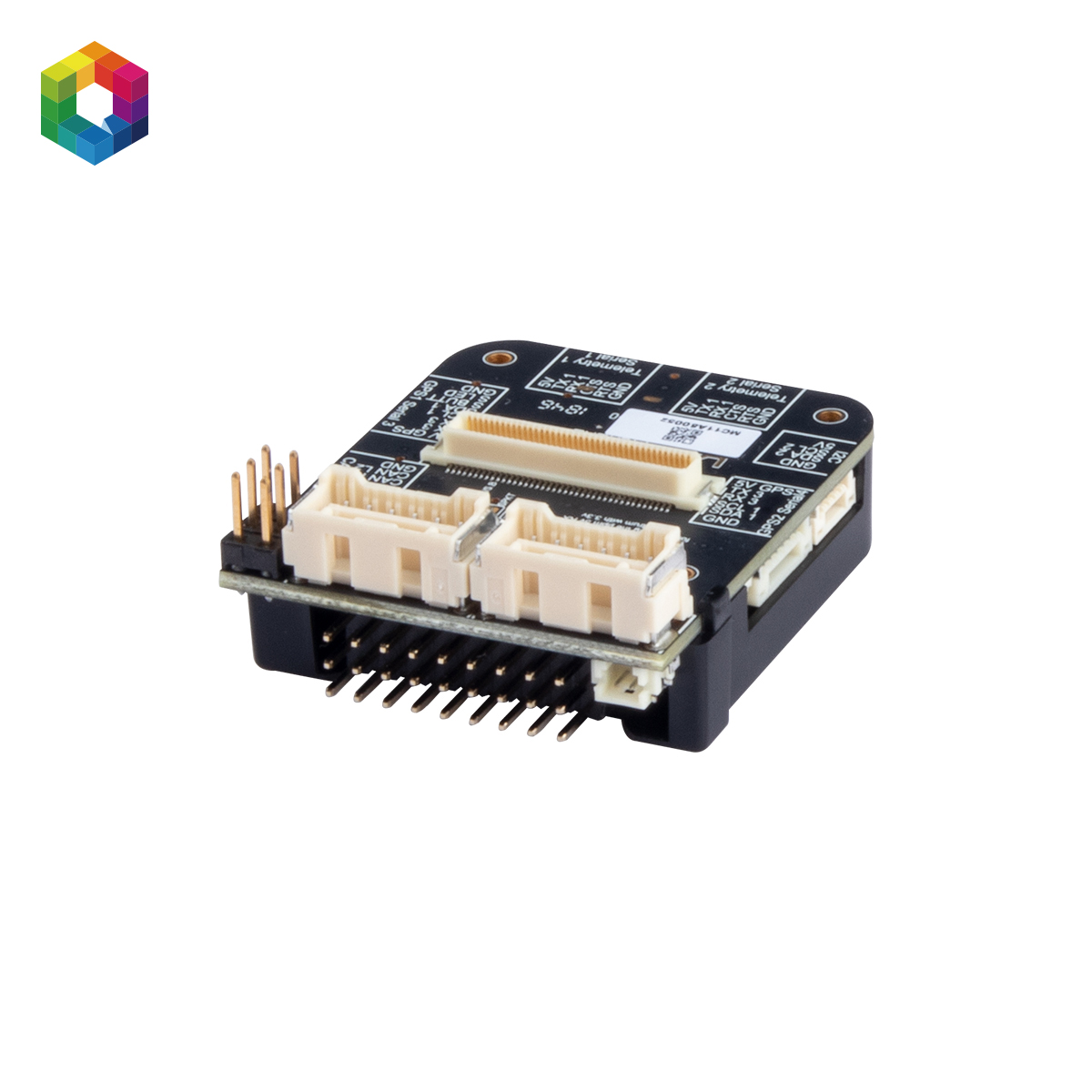

Mini Carrier Board

mini carrier board a compact base board designed to provide essential connectivity, power distribution, and voltage protection for a smaller computing module or flight controller, such as the Raspberry Pi Compute Module 4 (CM4) or the Cube (Pixhawk) series. They are ideal for applications where space is limited, such as drones, robotics, and IoT projects.

MFR Part #: HX4-06041

$92.40

Qty:

Specifications
Parts List

Key Features

Compact Size: Mini carrier boards are significantly smaller than their standard counterparts, enabling integration into tight spaces.
Essential I/O Ports: They offer necessary interfaces, which can include Gigabit Ethernet ports, USB ports, GPIO pin headers, and I²C connections, depending on the specific board's design and intended use.
Power Management: Many models feature built-in power distribution and voltage protection. Some even offer dual power inputs for redundancy, ensuring reliable operation.
Module Compatibility: They are designed to be compatible with specific modules (e.g., Raspberry Pi CM4 or Cube Autopilot modules) via standardized connectors, such as the DF17 connector for the Cube series.
Expansion Options: Despite their small size, they often include expansion slots like PCIe or M.2 slots for adding functionality such as Wi-Fi/Bluetooth modules or SSD storage.

STEM BOT Pro Kit - Parts List

(Download to View STEM BOT Parts List as PDF)

Note: 3D CAD files for all parts are available at www.studica.com/studica-robotics-resources

Controllers included in the STEM BOT Pro Kit:

VMX Robotics Controller
- The Studica Robotics VMX Robotics Controller can be used an a Robot Control System or Vision/Motion processor, supporting Java and C++. The controller integrates the navX-IMU, Gigabit Ethernet, USB3.0 ports and built-in Wifi and Bluetooth.
- Highly-integrated, inexpensive, WiFi-enabled, multi-core Linux computing platform with lots of USB IO for expansion.
- 32-bit ARM Microcontroller incorporating sophisticated I/O and digital communications engines
- Low-cost MEMs Inertial Measurement Units (IMUs)
- Powerful software providing rich libraries and tools for developing robot control software in C++, Java
- CAN bus for high-speed, real-time communication between devices
Titan Quad Motor Controller
- The Studica Robotics Titan Quad Motor Controller is a powerful, 4-channel CAN-based motor controller with a built-in fuse-box (for DC motors up to 20A).

Key Features

Compact Size: Mini carrier boards are significantly smaller than their standard counterparts, enabling integration into tight spaces.
Essential I/O Ports: They offer necessary interfaces, which can include Gigabit Ethernet ports, USB ports, GPIO pin headers, and I²C connections, depending on the specific board's design and intended use.
Power Management: Many models feature built-in power distribution and voltage protection. Some even offer dual power inputs for redundancy, ensuring reliable operation.
Module Compatibility: They are designed to be compatible with specific modules (e.g., Raspberry Pi CM4 or Cube Autopilot modules) via standardized connectors, such as the DF17 connector for the Cube series.
Expansion Options: Despite their small size, they often include expansion slots like PCIe or M.2 slots for adding functionality such as Wi-Fi/Bluetooth modules or SSD storage.
