    Power Distribution Board

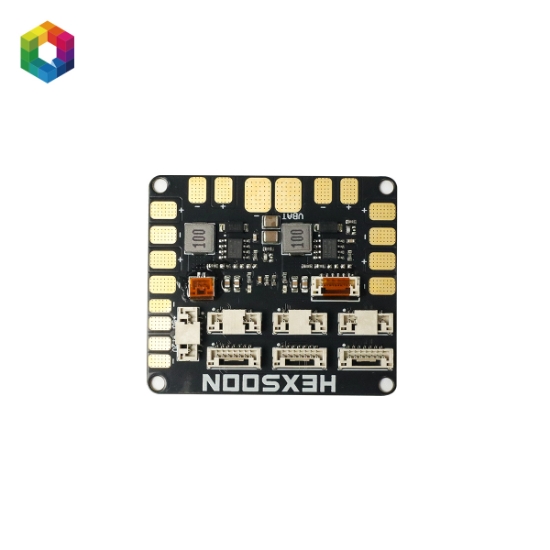

    The Hexsoon PDB-40A offers an all-in-one solution with a power distribution board (PDB) and multiple BECs. It is designed for use with the EDU450 frame and the Cube Orange+ standard set but is also a cost-effective and reliable option for various drone projects.

    MFR Part #: HS011
    $15.00

    Specifications

    • Dimensions: 57.2 x 50.5 x 5.2 mm
    • Mounting: 52 x 45.3 mm, Φ3 mm
    • Total Weight: 14.5 g
    • Construction: 4oz copper, 4-layers & 1.0mm PCB
    • ESC Solder Tabs: Total 6 pairs
    • Output Indicators: 5V & 12V LED indicators
    • ESC Peak Current: 6x40A
    • ESC Continuous Current: 6x25A

    Specifications

    • Dimensions: 57.2 x 50.5 x 5.2 mm
    • Mounting: 52 x 45.3 mm, Φ3 mm
    • Total Weight: 14.5 g
    • Construction: 4oz copper, 4-layers & 1.0mm PCB
    • ESC Solder Tabs: Total 6 pairs
    • Output Indicators: 5V & 12V LED indicators
    • ESC Peak Current: 6x40A
    • ESC Continuous Current: 6x25A
