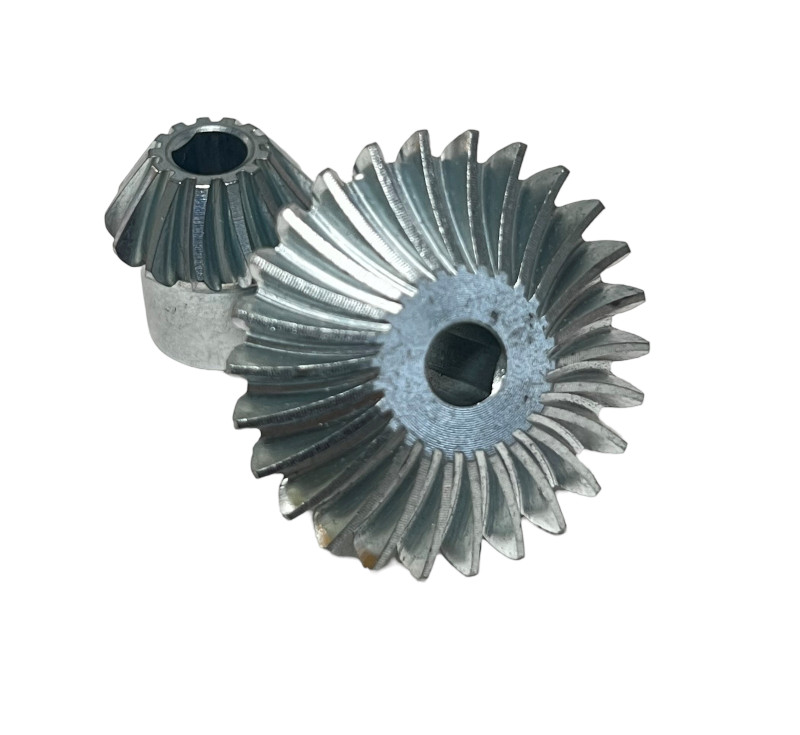

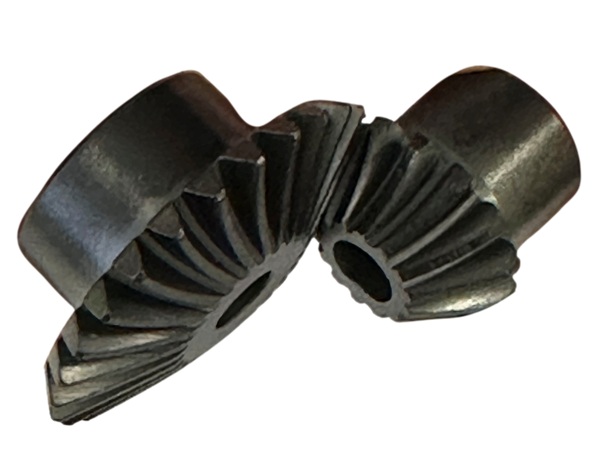

13 and 26 Tooth D-Shaft Helical Bevel Gear Set

Made from 3mm thick heavy 6061-T6 Aluminum, the Inside L Bracket is 42mm x 45mm and is used inside the U Channel or Low profile channel.As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material - Anodized 6061-T6 Aluminum
• Thickness - 3mm
• Step File

Made from 3mm thick heavy 6061-T6 Aluminum, the L Bracket is 48mm x 48mm and is used outside the U Channel or Low profile channel. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material - Anodized 6061-T6 Aluminum
• Thickness - 3mm
• Step File

Standoffs can be used to space parallel plates, channel, brackets, etc.

Specifications:

• Material: 6061-T6 Aluminum
• Thread: M3
• Length: 25mm
• Step File

Used with the Maverick DC Motor with a 6mm shaft and any 6mm D-Shaft Axels. Used with 10mm Timing Belt, # 76233.

Specifications:

• 10 Tooth Timing Pulley
• 6mm Bore
• material: 6061 T6 Aluminum
• Step File

The Studica Servo Arm can be used with the Multi Mode Servo, Multi Mode Servo 200, or most servos with a 25 Tooth gear.

Specifcations:

• Spline: 25 Tooth, 3.8mm deep
• Length: 33mm
• Width: 14mm
• Height: 7.8mm
• Material: 6061-T6 Aluminum
• Step File

The Studica Servo Hub Pro can be used with the Multi Mode Servo, Multi Mode Servo 200, or most servos with a 25 Tooth gear.

Specifcations:

• Spline: 25 Tooth, 3.8mm deep
• Height: 9mm
• OD: 30mm
• Material: 6061-T6 Aluminum
• Step File

The Studica Robotics 36-Tooth D-Shaft Helical Bevel Gear 1:1 Set is designed for smooth and efficient power transmission.  This precision-engineered gear set made of zinc-plated 20CrMnTi hardened steel is perfect for FTC and STEM applications.
