288mm L-Beam (2 pack)

The Servo Power Block is a 6V, 60W power injector that provides proper power for RC Servos. It does not interfere with the signal, it will only replace the power to the servo with 6V.

Features,

• Built in DC-DC converter
• Over-current shutdown
• ESD protection

Specifications,

• Nominal Input Voltage: 12V
• Operational Voltage Range: 6.0V
• Number of Channels: 8
• Max Current for All Channels Combined: 10A
• Total Continuous Power: 60W
• Size: 70mm x 45mm x 16mm
• Step File

Made from aluminum and anodized in blue, the Studica 42mm Hinge with Bearings connects to the Studica structure hole pattern such as the channel, plates, and beams. The holes are 3.2mm diameter to use with the M3 screws.

• Material: 6063 Aluminum
• Length: 42mm
• Width: 30.88mm
• Thickness: 3.5mm
• Hole diameter: 3.2MM
• Step file

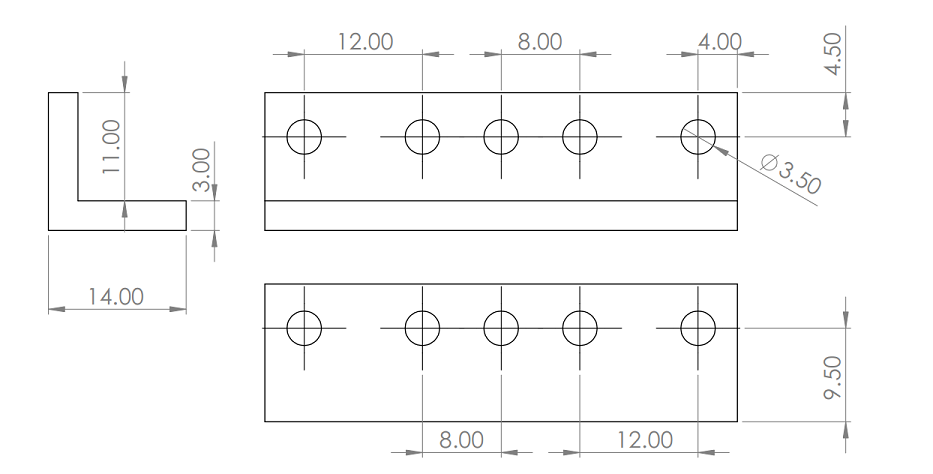

The Studica L-Beam is available in 9 different lengths from 48mm to 432mm. It is strong while light weight. It can be easily cut to your own custom size. The hole pattern matches the hole patterns in the Studica U-Channel, Low Profile U-Channel, and the various plates.

Specifcations,

• Material:  6061-T6 Aluminum
• Length: 432mm
• Width: 14mm
• Height: 14mm
• Thickness: 3mm
• Hole Diameter: 3.5mm
• Weight: 0.08kg
• Step File

The Studica L-Beam is available in 9 different lengths from 48mm to 432mm. It is strong while light weight. It can be easily cut to your own custom size. The hole pattern matches the hole patterns in the Studica U-Channel, Low Profile U-Channel, and the various plates.

Specifcations,

• Material:  6061-T6 Aluminum
• Length: 48mm
• Width: 14mm
• Height: 14mm
• Thickness: 3mm
• Hole Diameter: 3.5mm
• Weight: 0.009kg
• Step File

The Studica L-Beam is available in 9 different lengths from 48mm to 432mm. It is strong while light weight. It can be easily cut to your own custom size. The hole pattern matches the hole patterns in the Studica U-Channel, Low Profile U-Channel, and the various plates.

Specifcations,

• Material:  6061-T6 Aluminum
• Length: 96mm
• Width: 14mm
• Height: 14mm
• Thickness: 3mm
• Hole Diameter: 3.5mm
• Weight: 0.017kg
• Step File

The Studica L-Beam is available in 9 different lengths from 48mm to 432mm. It is strong while light weight. It can be easily cut to your own custom size. The hole pattern matches the hole patterns in the Studica U-Channel, Low Profile U-Channel, and the various plates.

Specifcations,

• Material:  6061-T6 Aluminum
• Length: 240mm
• Width: 14mm
• Height: 14mm
• Thickness: 3mm
• Hole Diameter: 3.5mm
• Weight: 0.043kg
• Step File

The Studica L-Beam is available in 9 different lengths from 48mm to 432mm. It is strong while light weight. It can be easily cut to your own custom size. The hole pattern matches the hole patterns in the Studica U-Channel, Low Profile U-Channel, and the various plates.

Specifcations,

• Material:  6061-T6 Aluminum
• Length: 192mm
• Width: 14mm
• Height: 14mm
• Thickness: 3mm
• Hole Diameter: 3.5mm
• Weight: 0.034kg
• Step File
