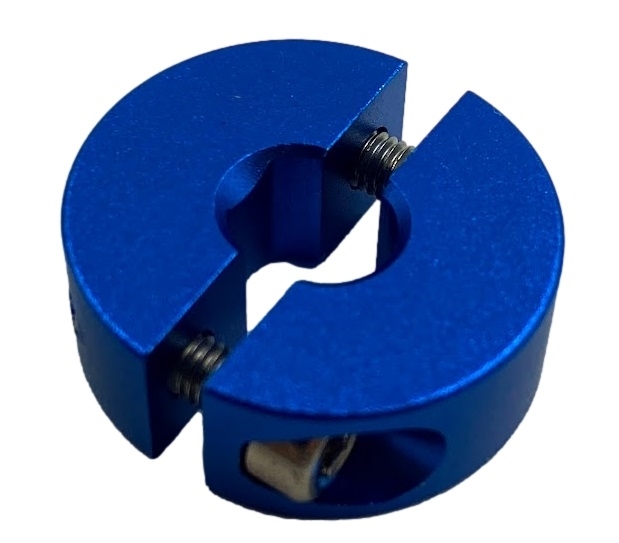

6mm D-Shaft Collar Clamp 2 Piece

• 42.0mm*42.0mm*11.3mm thick
• 16*M3*8.0mm thread
• M3 pass through holes
• SHCS sit flush
• Material - AL6061-T6
• Step File

• ODΦ20.0mm*ID14.0mm
• *3.0mm thick
• 8*Φ3.50mm holes
• 10pcs per pack
• Delrin
• Blue
• Step File

• Used with 5.5mm Nuts
• 50BV30 ratchet head
• heat treatment
• surface balck finished
• body #45 carbon steel material
• mirror polishing
• product engrave size and laser logo
• length 110mm

Made of aluminum, the Studica Clamping 6mm D-Shaft Hub - v2 is used with flex and drive wheels

Specifcation:

• Material: 6061-T6 Aluminum
• 6mm ID
• Hole pattern for connecting to structure
• Step File

The Studica U Channel is 3mm thick and has a 48mm x 48mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material: 6061-T6 Aluminum
• Thickness - 3mm
• Height - 48mm
• Width - 48mm
• Length - 192mm
• Weight - 165gms
• Hole pattern - 4
• Step File

The Studica 6mm D-Shaft Face Bearing Block can be mounted on any Studica channel and bracket providing which will allow for a 6mm ID through hole for 6mm shafts (axles). It has a permanently installed Standard Sealed Bearing. Has 8 x M3 tapped through holes for easy mounting.

The Studica Square Beam is 8mm by 8mm. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material -  Anodized 6061-T6 Aluminum
• Holes - 3.5mm diameter spaced 8mm apart
• Length - 96mm
• Step File
