6mm Low Profile Hex Shaft Clamping Hub-V2

The Studica Flat Bracket is a very strong  3mm x 40mm wide. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material: 6061-T6 Aluminum
• Thickness - 3mm
• Width - 40mm
• Length - 96mm
• Step File

The Studica Flat Bracket is a very strong  3mm x 40mm wide. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material: 6061-T6 Aluminum
• Thickness - 3mm
• Width - 40mm
• Length - 144mm
• Hole Pattern - 3
• Step File

Use this bracket to secure the IR Range Sensor to the Studica structure.

• Step File

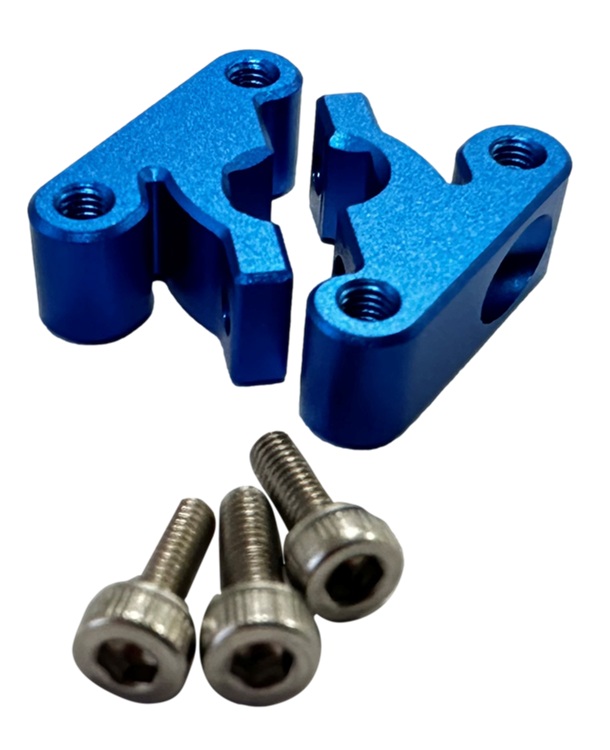

Precision Hub for Hex-Shaft Couplings

The Studica Robotics 6 mm Low Profile Hex Shaft Clamping Hub V2 is engineered to deliver a secure and compact coupling between your motor or drive shaft and wheels, sprockets, or other mechanical components. With its 6 mm hex-shaft ID and low profile form, it's ideal for tight-space and high-precision builds.  Made of aluminum, the Studica Robotics Clamping 6mm Hex Shaft Hub-V2 is used with our wheels.

Step File

The Studica U Channel is 3mm thick and has a 48mm x 48mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material: 6061-T6 Aluminum
• Thickness - 3mm
• Height - 48mm
• Width - 48mm
• Length - 336mm
• Weight - 282gms
• Hole pattern - 7
• Step File

The 6mm D Shaft Hub is used to connect any Studica wheel and the Studica motor or any motor with a 6mm shaft.

Specifcation:

• Material: 6061-T6 Aluminum
• 6mm ID
• Deburred, polished, and anodized
• Hole pattern for connecting to structure
• Step File

The Intake Kit can be used to create intake systems and is ideal for the FIRST Technical Challenge (FTC) and World Robotics Olympiad (WRO). Used with the Silicone Rubber Tubing #76410

Specifications:

• Main piece
  • hex width: 20.78mm*10.0mm thick
  • 6*M6 tapped holes
  • 1*M4 tappped hole for M4 set screw
  • 6.0mm Diameter D Hole
  • Material AL6061-T6
  • Φ7.5mm*14.0mm
• Pins
  • 6PCS in a pack
  • M6*4.0mm thread
  • Material SS303
• Step file
