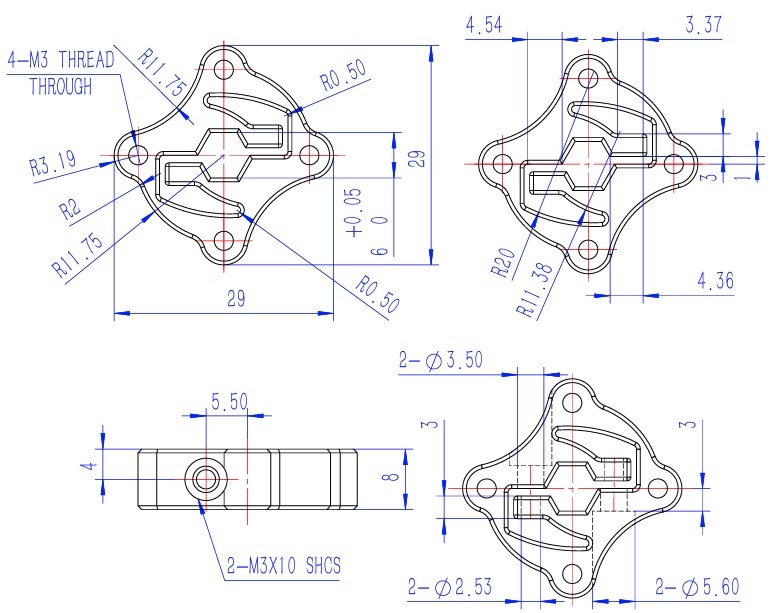

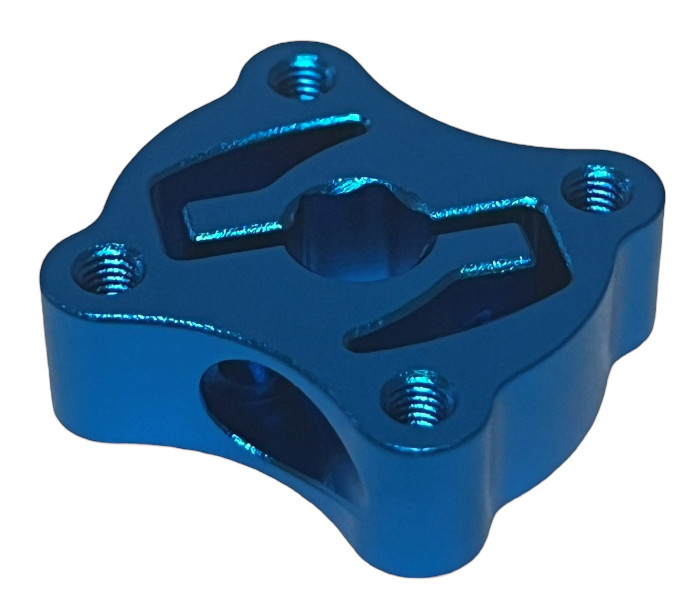

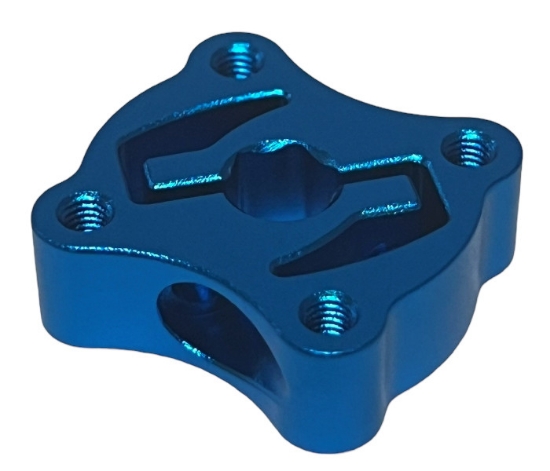

The Studica Robotics 6mm Hex-Shaft Low Profile Clamping Hub is an ideal fit for our motors.
Step file
(Download to View STEM BOT Parts List as PDF)
Note: 3D CAD files for all parts are available at www.studica.com/studica-robotics-resources
Controllers included in the STEM BOT Pro Kit:
The Studica Robotics 6mm Hex-Shaft Face Bearing Block can be mounted on any channel and bracket allowing for a 6mm ID through hole for 6mm shafts (axles). The block has a permanently installed Standard Sealed Bearing and has 8 x M3 tapped through holes for easy mounting.
The Studica Robotics Clamping 6mm Hex-Shaft Hub is used with flex and drive wheels and is improved for the absolute strongest hold.
The Studica Robotics 6mm Hex-Shaft collar clamp cay be used with the 6mm D-Shape Shaft to secure wheels in their position.
The Studica Robotics 6mm Hex-Shaft Servo Hub 25T is made of anodized 6061-T6 Aluminum and is used to connect a servo motor to a Hex-Shaft axle.
This 5mm Spacer is used to space gears, sprockets, wheels, and other parts along a 6mm Hex-Shaft. Mix and match various spacer lengths.
This 20mm Spacer is used to space gears, sprockets, wheels, and other parts along a 6mm Hex-Shaft. Mix and match various spacer lengths.
The Studica Robotics 20 Tooth GT2-6mm Timing Belt Hex-Shaft Pulley can be used with any of the GT2 belts.
