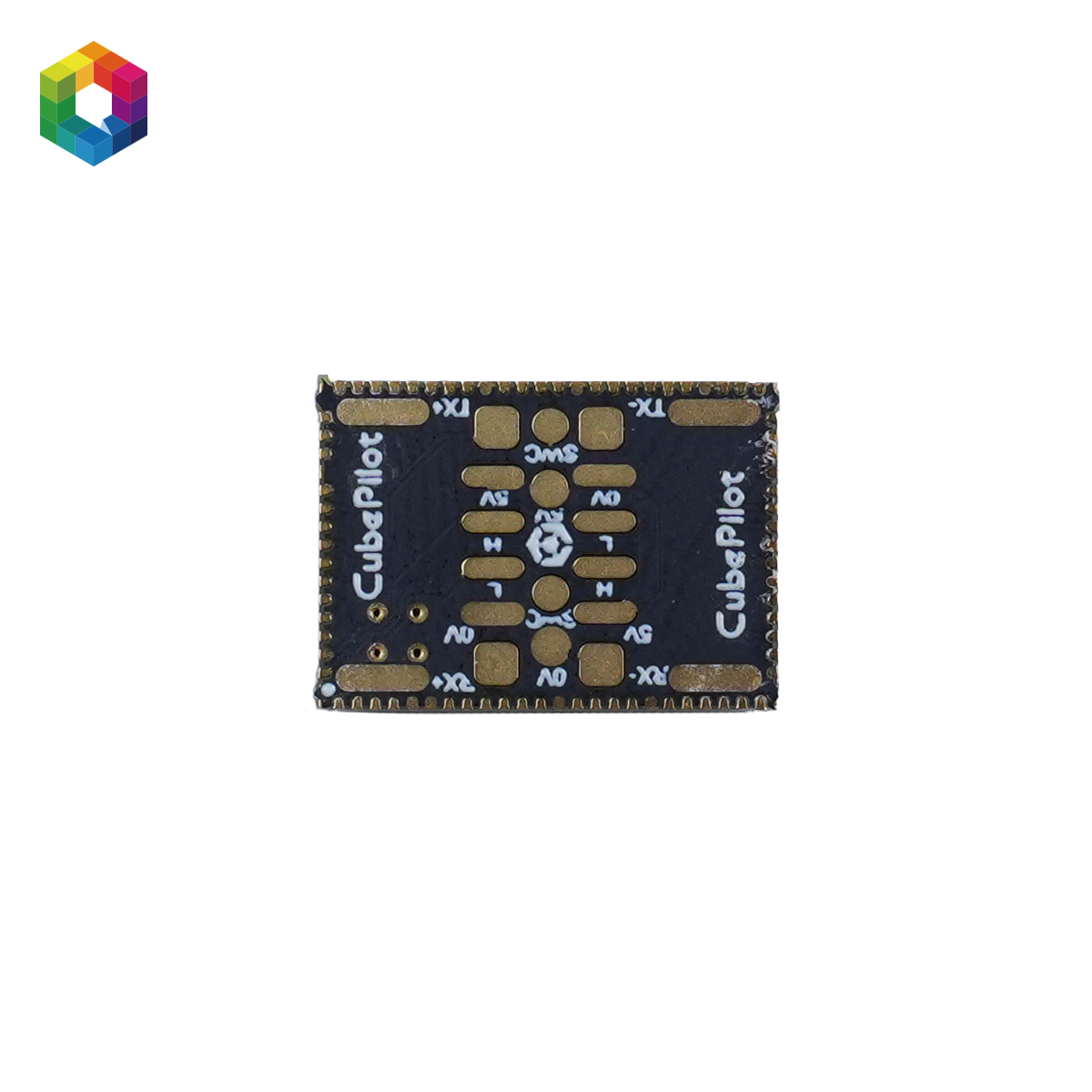

    CubeNode v1

    CubeNode v1 is a high-performance development and connectivity module within the complete CubePilot ecosystem, primarily designed for UAVs, drones, and robotics. It serves as a versatile platform for developing and testing components such as navigation systems, communication modules, and sensors.

    MFR Part #: CP-06313
    $100.00
    Key Specifications
    • Processor: Features a dual-core architecture with an Arm® Cortex®-M7 (up to 480 MHz) and an Arm® Cortex®-M4 (up to 240 MHz).
    • Memory: Includes 2 MB of dual-bank Flash and up to 1 MB of RAM (including TCM RAM and backup SRAM).
    • Connectivity & I/O:
      • 2 x CAN FD and 1 x 10/100BaseT Ethernet.
      • Up to 7 UART/USART ports (note: using Ethernet disables USART2 due to shared pins).
      • 1 x USB, 1 x SDMMC, and multiple SPI, I2C, and analog channels.
    • Compliance: The v1 module is 2024 NDAA compliant, with components sourced and assembled in Allied nations.
    Primary Applications
    • Communication Bridge: Acts as a reliable interface between CAN-based peripherals and companion computers via Ethernet.
    • Component Development: Used by developers to refine flight control and navigation payloads before final system integration.
    • Robotics Integration: Simplifies wiring and ensures robust data transmission in industrial automation and complex UAV platforms.

    STEM BOT Pro Kit - Parts List

    (Download to View STEM BOT Parts List as PDF)

    Note: 3D CAD files for all parts are available at www.studica.com/studica-robotics-resources

    Controllers included in the STEM BOT Pro Kit:

    • VMX Robotics Controller
      • The Studica Robotics VMX Robotics Controller can be used an a Robot Control System or Vision/Motion processor, supporting Java and C++.  The controller integrates the navX-IMU, Gigabit Ethernet, USB3.0 ports and built-in Wifi and Bluetooth.
      • Highly-integrated, inexpensive, WiFi-enabled, multi-core Linux computing platform with lots of USB IO for expansion.
      • 32-bit ARM Microcontroller incorporating sophisticated I/O and digital communications engines
      • Low-cost MEMs Inertial Measurement Units (IMUs)
      • Powerful software providing rich libraries and tools for developing robot control software in C++, Java
      • CAN bus for high-speed, real-time communication between devices
    • Titan Quad Motor Controller
      • The Studica Robotics Titan Quad Motor Controller is a powerful, 4-channel CAN-based motor controller with a built-in fuse-box (for DC motors up to 20A).
    Key Specifications
    • Processor: Features a dual-core architecture with an Arm® Cortex®-M7 (up to 480 MHz) and an Arm® Cortex®-M4 (up to 240 MHz).
    • Memory: Includes 2 MB of dual-bank Flash and up to 1 MB of RAM (including TCM RAM and backup SRAM).
    • Connectivity & I/O:
      • 2 x CAN FD and 1 x 10/100BaseT Ethernet.
      • Up to 7 UART/USART ports (note: using Ethernet disables USART2 due to shared pins).
      • 1 x USB, 1 x SDMMC, and multiple SPI, I2C, and analog channels.
    • Compliance: The v1 module is 2024 NDAA compliant, with components sourced and assembled in Allied nations.
    Primary Applications
    • Communication Bridge: Acts as a reliable interface between CAN-based peripherals and companion computers via Ethernet.
    • Component Development: Used by developers to refine flight control and navigation payloads before final system integration.
    • Robotics Integration: Simplifies wiring and ensures robust data transmission in industrial automation and complex UAV platforms.
