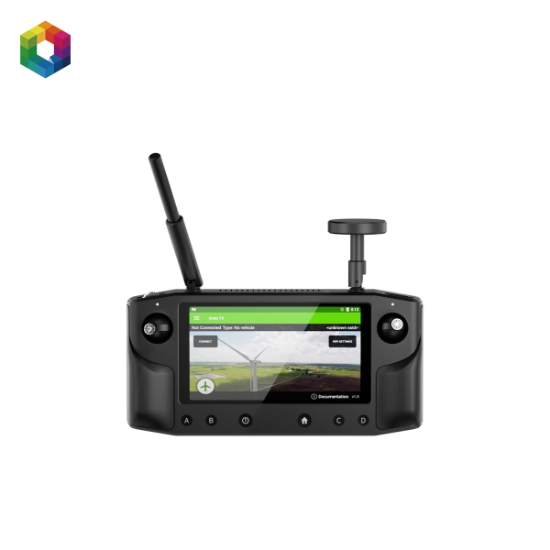

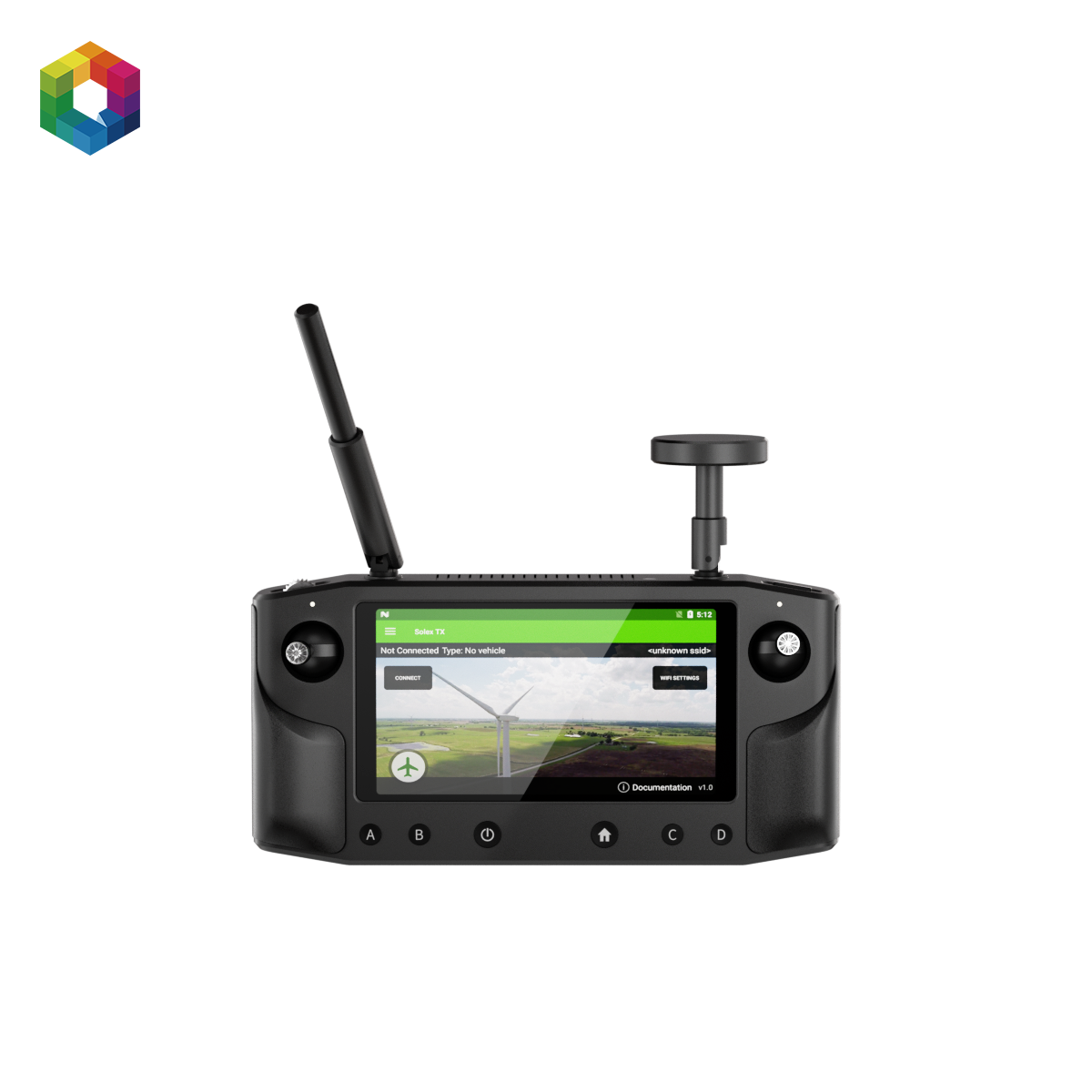

    Herelink Controller Unit

    The Herelink Controller Unit is an integrated remote controller, ground station, and wireless digital transmission system designed for use with drones and robotics based on the Ardupilot or PX4 autopilot systems.

    MFR Part #: HX4-06211
    Request a Quote
    Key Features
    • Integrated Design: Combines RC control, a built-in display screen (5.5" 1000 nits brightness), and an HD video/telemetry data link into a single handheld device.
    • Long Range Transmission: The system allows for video, telemetry, and control data transmission up to 20 km (FCC) between the controller and the air unit, with minimum latency of approximately 110 ms.
    • High-Performance Processor: Both the controller and air unit feature an integrated 8-core Pinecone S1 system-on-chip (SoC) for running custom applications and handling processing demands.
    • Software Compatibility: It runs customized Solex TX and QGroundControl (QGC) applications and supports MAVLink for seamless integration with Ardupilot and PX4 open-source autopilot platforms.
    • HD Video Support: Supports video formats including 720p@30fps and 1080p@30/60fps via dual HDMI inputs on the air unit.
    • Connectivity: Includes Wi-Fi for Over-The-Air (OTA) updates, Bluetooth, and a micro USB port. The V1.1 air unit also features an Ethernet port and an SD card slot.
    What's Included
    A standard Herelink Controller Unit package typically includes:
    • 1x Herelink Controller Unit (V1.1)
    • 2x Herelink Controller Joysticks
    • 1x Herelink Omni-directional Antenna
    • 1x Herelink Directional Antenna
    • 1x Herelink Set up tips card

    STEM BOT Pro Kit - Parts List

    (Download to View STEM BOT Parts List as PDF)

    Note: 3D CAD files for all parts are available at www.studica.com/studica-robotics-resources

    Controllers included in the STEM BOT Pro Kit:

    • VMX Robotics Controller
      • The Studica Robotics VMX Robotics Controller can be used an a Robot Control System or Vision/Motion processor, supporting Java and C++.  The controller integrates the navX-IMU, Gigabit Ethernet, USB3.0 ports and built-in Wifi and Bluetooth.
      • Highly-integrated, inexpensive, WiFi-enabled, multi-core Linux computing platform with lots of USB IO for expansion.
      • 32-bit ARM Microcontroller incorporating sophisticated I/O and digital communications engines
      • Low-cost MEMs Inertial Measurement Units (IMUs)
      • Powerful software providing rich libraries and tools for developing robot control software in C++, Java
      • CAN bus for high-speed, real-time communication between devices
    • Titan Quad Motor Controller
      • The Studica Robotics Titan Quad Motor Controller is a powerful, 4-channel CAN-based motor controller with a built-in fuse-box (for DC motors up to 20A).
    Key Features
    • Integrated Design: Combines RC control, a built-in display screen (5.5" 1000 nits brightness), and an HD video/telemetry data link into a single handheld device.
    • Long Range Transmission: The system allows for video, telemetry, and control data transmission up to 20 km (FCC) between the controller and the air unit, with minimum latency of approximately 110 ms.
    • High-Performance Processor: Both the controller and air unit feature an integrated 8-core Pinecone S1 system-on-chip (SoC) for running custom applications and handling processing demands.
    • Software Compatibility: It runs customized Solex TX and QGroundControl (QGC) applications and supports MAVLink for seamless integration with Ardupilot and PX4 open-source autopilot platforms.
    • HD Video Support: Supports video formats including 720p@30fps and 1080p@30/60fps via dual HDMI inputs on the air unit.
    • Connectivity: Includes Wi-Fi for Over-The-Air (OTA) updates, Bluetooth, and a micro USB port. The V1.1 air unit also features an Ethernet port and an SD card slot.
    What's Included
    A standard Herelink Controller Unit package typically includes:
    • 1x Herelink Controller Unit (V1.1)
    • 2x Herelink Controller Joysticks
    • 1x Herelink Omni-directional Antenna
    • 1x Herelink Directional Antenna
    • 1x Herelink Set up tips card
