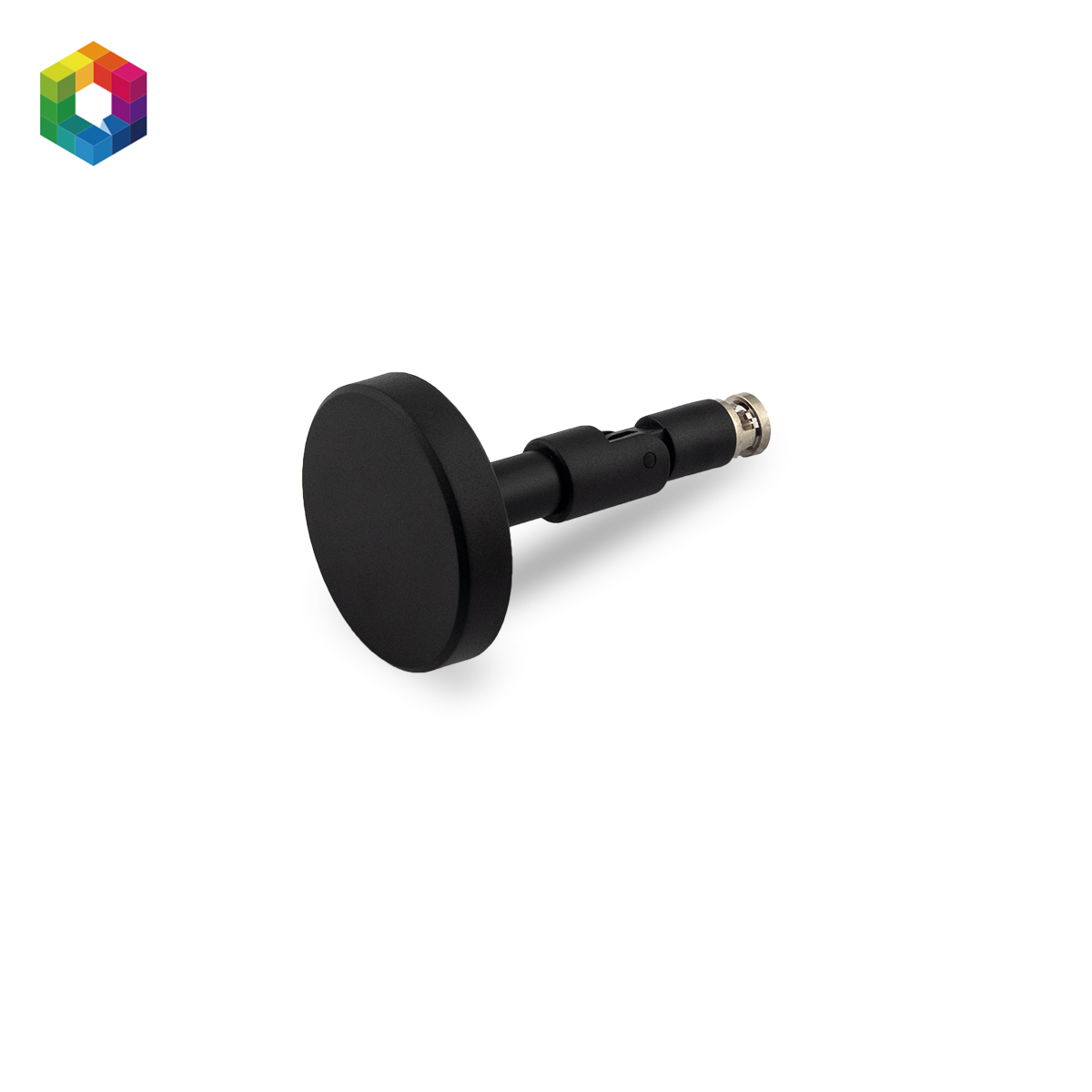

Herelink Directional Antenna

The Herelink Directional Antenna is a replacement or upgrade component for the Herelink digital transmission system, designed to focus signal transmission for increased range and stability.

MFR Part #: HX4-06086

$15.00

Qty:

Specifications
Parts List

Key Specifications

Purpose: Primarily used on the Herelink Ground Unit (Controller) to improve point-to-point communication with the drone.
Part Number: Commonly identified as HX4-06086.
Compatibility: While standard for newer units, some versions are specifically noted as compatible with the Herelink Black and may not work with the Herelink Blue.
Performance: Directional antennas provide higher gain and better throughput than omnidirectional alternatives but require more precise aiming toward the aircraft.

STEM BOT Pro Kit - Parts List

(Download to View STEM BOT Parts List as PDF)

Note: 3D CAD files for all parts are available at www.studica.com/studica-robotics-resources

Controllers included in the STEM BOT Pro Kit:

VMX Robotics Controller
- The Studica Robotics VMX Robotics Controller can be used an a Robot Control System or Vision/Motion processor, supporting Java and C++. The controller integrates the navX-IMU, Gigabit Ethernet, USB3.0 ports and built-in Wifi and Bluetooth.
- Highly-integrated, inexpensive, WiFi-enabled, multi-core Linux computing platform with lots of USB IO for expansion.
- 32-bit ARM Microcontroller incorporating sophisticated I/O and digital communications engines
- Low-cost MEMs Inertial Measurement Units (IMUs)
- Powerful software providing rich libraries and tools for developing robot control software in C++, Java
- CAN bus for high-speed, real-time communication between devices
Titan Quad Motor Controller
- The Studica Robotics Titan Quad Motor Controller is a powerful, 4-channel CAN-based motor controller with a built-in fuse-box (for DC motors up to 20A).

Key Specifications

Purpose: Primarily used on the Herelink Ground Unit (Controller) to improve point-to-point communication with the drone.
Part Number: Commonly identified as HX4-06086.
Compatibility: While standard for newer units, some versions are specifically noted as compatible with the Herelink Black and may not work with the Herelink Blue.
Performance: Directional antennas provide higher gain and better throughput than omnidirectional alternatives but require more precise aiming toward the aircraft.
