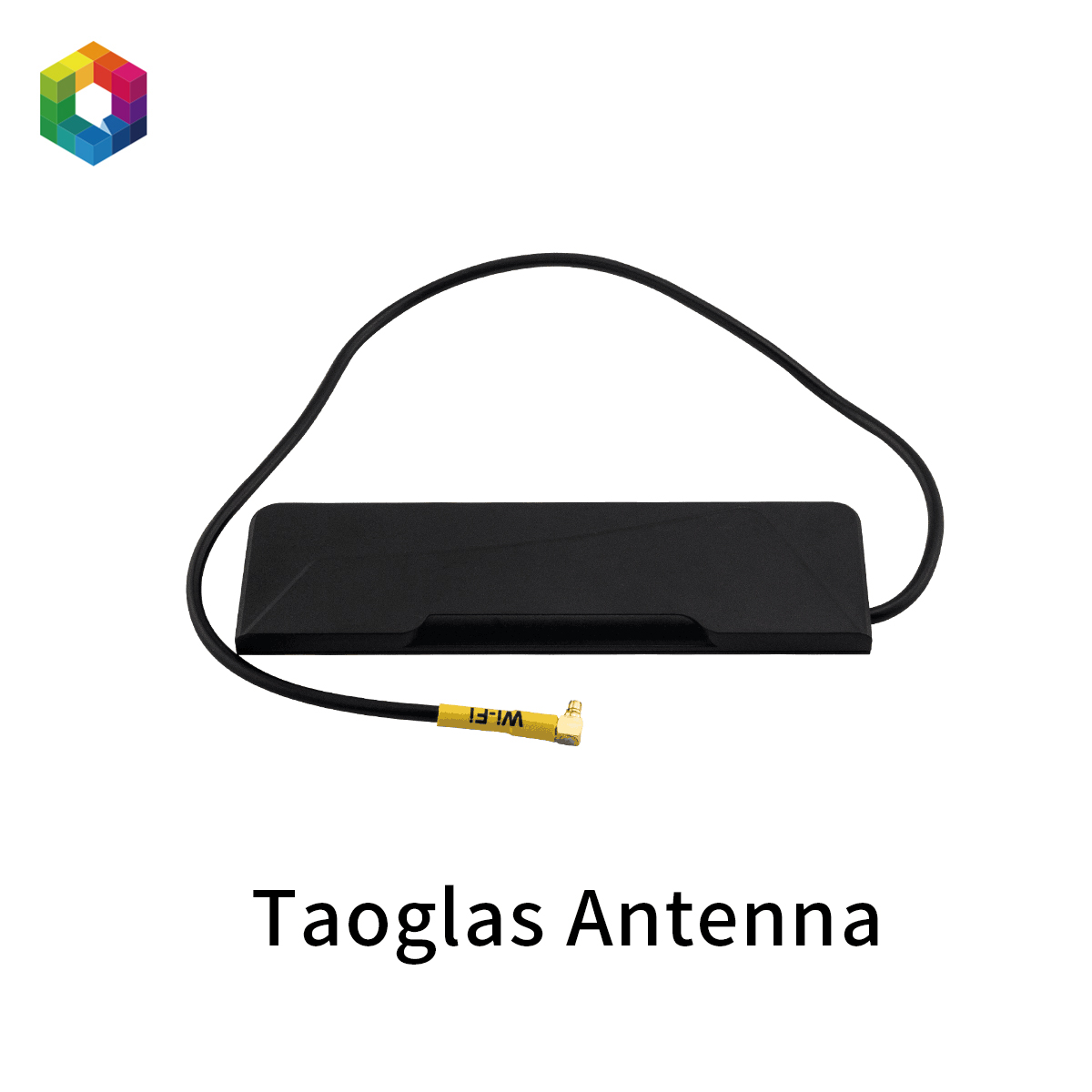

Herelink Taoglas Antenna

Herelink systems Taoglas antennas is a reliable 2.4 GHz signal transmission and reception. Both the air unit and the ground station (controller) come with specific Taoglas antennas, which are also available as replacement parts or upgrade options

MFR Part #: HX4-06084

$25.00

Qty:

Specifications
Parts List

Herelink Air Unit Antennas

The Herelink Air Unit
uses two antennas:

Type: These are adhesive-mount, low-profile antennas designed for easy installation on a drone or other platform.
Frequency: They operate at 2.4 GHz ISM frequency.
Connector: They connect via an MMCX connector.
Specifications:
- Dimensions: approx. 104mm x 30mm x 7mm
- Cable: 1m RG-174 cable

Herelink Ground Station (Controller) Antennas

The Herelink Ground Station uses two types of antennas:

Omnidirectional Antennas: These are the standard "stick" antennas included with the controller and are omnidirectional for general use.
- Frequency: 2.4 GHz
- Connector: SMA
- Gain: Up to 5dBi max
Directional Antennas: An optional directional patch antenna is available for the controller unit. It helps focus the signal, improving range and link stability in a specific direction.

Key Features

Reliability: Taoglas antennas are known for high performance, efficiency, and durability in demanding wireless applications.
Frequency: The primary operating frequency for the Herelink system is 2.4 GHz, which handles both control and HD video transmission.
Replacement/Upgrade: Herelink Taoglas antenna sets are available as direct replacements or part of upgrade kits for users seeking discreet or panel-mounting solutions.

STEM BOT Pro Kit - Parts List

(Download to View STEM BOT Parts List as PDF)

Note: 3D CAD files for all parts are available at www.studica.com/studica-robotics-resources

Controllers included in the STEM BOT Pro Kit:

VMX Robotics Controller
- The Studica Robotics VMX Robotics Controller can be used an a Robot Control System or Vision/Motion processor, supporting Java and C++. The controller integrates the navX-IMU, Gigabit Ethernet, USB3.0 ports and built-in Wifi and Bluetooth.
- Highly-integrated, inexpensive, WiFi-enabled, multi-core Linux computing platform with lots of USB IO for expansion.
- 32-bit ARM Microcontroller incorporating sophisticated I/O and digital communications engines
- Low-cost MEMs Inertial Measurement Units (IMUs)
- Powerful software providing rich libraries and tools for developing robot control software in C++, Java
- CAN bus for high-speed, real-time communication between devices
Titan Quad Motor Controller
- The Studica Robotics Titan Quad Motor Controller is a powerful, 4-channel CAN-based motor controller with a built-in fuse-box (for DC motors up to 20A).

Herelink Air Unit Antennas

The Herelink Air Unit
uses two antennas:

Type: These are adhesive-mount, low-profile antennas designed for easy installation on a drone or other platform.
Frequency: They operate at 2.4 GHz ISM frequency.
Connector: They connect via an MMCX connector.
Specifications:
- Dimensions: approx. 104mm x 30mm x 7mm
- Cable: 1m RG-174 cable

Herelink Ground Station (Controller) Antennas

The Herelink Ground Station uses two types of antennas:

Omnidirectional Antennas: These are the standard "stick" antennas included with the controller and are omnidirectional for general use.
- Frequency: 2.4 GHz
- Connector: SMA
- Gain: Up to 5dBi max
Directional Antennas: An optional directional patch antenna is available for the controller unit. It helps focus the signal, improving range and link stability in a specific direction.

Key Features

Reliability: Taoglas antennas are known for high performance, efficiency, and durability in demanding wireless applications.
Frequency: The primary operating frequency for the Herelink system is 2.4 GHz, which handles both control and HD video transmission.
Replacement/Upgrade: Herelink Taoglas antenna sets are available as direct replacements or part of upgrade kits for users seeking discreet or panel-mounting solutions.
