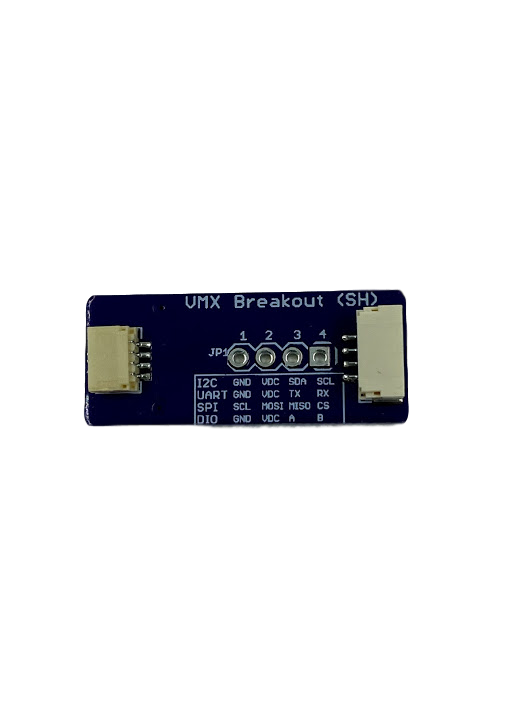

VMX JST GH to SH Breakout Board

The 6mm D-Shaft Servo Hub 25T is made of anodized 6061-T6 Aluminum and is used to connect a servo motor to a D-Shaft axel.

• Step File

The Studica Linear Servo RC Actuator 50S-190N is a new Servo motor which has a stroke of 50mm and a max force of 190N. It works the same way as the any standard rotary servo but in a linear movement. It uses the same 2.54mm Dupont 3-Pin Female wire connector and can be controlled with an RC receiver or any device that controls a servo. Includes mounting brackets.

The Studica Linear Servo RC Actuator 140S-190N is a new Servo motor which has a stroke of 140mm and a max force of 190N. It works the same way as the any standard rotary servo but in a linear movement. It uses the same 2.54mm Dupont 3-Pin Female wire connector and can be controlled with an RC receiver or any device that controls a servo. Includes mounting brackets.

Use this bracket to secure the IR Range Sensor to the Studica structure.

• Step File

The Studica Smart Robot Servo Programmer is used for programming the Studica Multi-Model Smart Servo Motor and for testing other standard Servos. Use it to program the Studica Servo to switch between continuous mode, standard mode, or any custom angular mode.

Specifications:

• Requires 6 Volt battery pack with TJC8 connector or use the Studica 6V DC Battery Holder.
• Programming setting modes
  • Standard
  • Continuous
  • Angular

The 100mm (4") Flex Wheel can be used for intake systems and conveyors.

Specifications:

• Diameter:   100mm (4")
• Axial width:  25mm
• Hub:  1/2" Inner Hex
• Inner Material: Molded Plastic in Yellow
• Outer Material: TPU Polyurethane in Black
• Outer Material Durometer: 60A
• Weight: 0.038kg
• Step File
