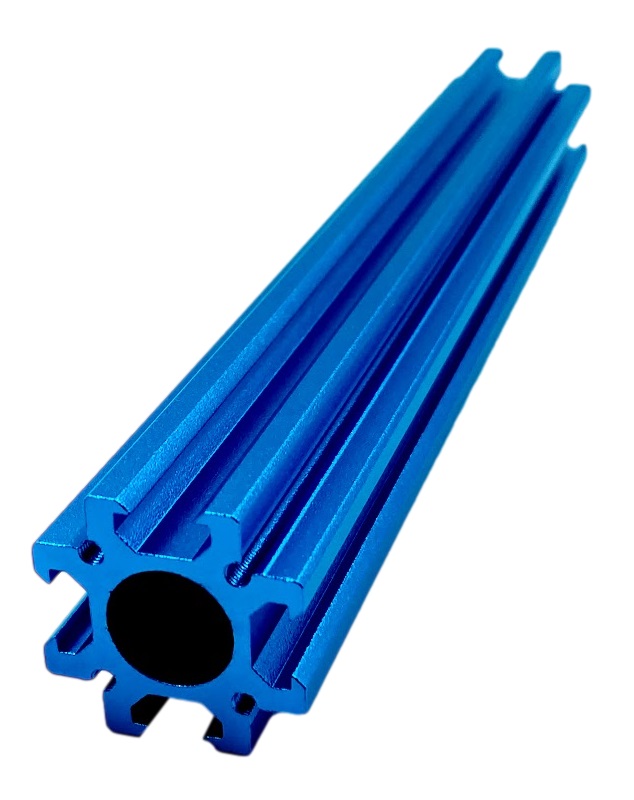

    288mm T-Slot 3030 V-Rail

    The Studica T-Slot 3030 V-Rail is available in 10 different lengths from 48mm to 1000mm. It is strong while light weight. It can be easily cut to your own custom size. It has a 14mm through hole that will fit the Studica 6mmID x 14mmOD Flanged Bearing or Bronze Bushing. It uses the M3 T-Slot Nut Hammer Head Series 20.  It also has four M3 threaded holes on each end. Use it as structure on infinite applications.

    Specifcations,

    • Material:  6061-T6 Aluminum
    • Length: 288mm
    • Weight: 0.761kg
    • Step File
    MFR Part #: 76123
    $4.99
    207 in stock

    Applications:

    The light weight T-Slot 3030 V-Rail has endless applications. Here are just a few.

    • Stabilizer bar
    • As Columns, as used with our stack bots
    • To create horizontal, vertical and any direction slide system. Here's one simple slide that can be used on any of the T-Slot V-Rails

    Write your own review
    • Product can be reviewed only after purchase
    • Only registered users can write reviews
    *
    *
    • Bad
    • Excellent

    Applications:

    The light weight T-Slot 3030 V-Rail has endless applications. Here are just a few.

    • Stabilizer bar
    • As Columns, as used with our stack bots
    • To create horizontal, vertical and any direction slide system. Here's one simple slide that can be used on any of the T-Slot V-Rails
