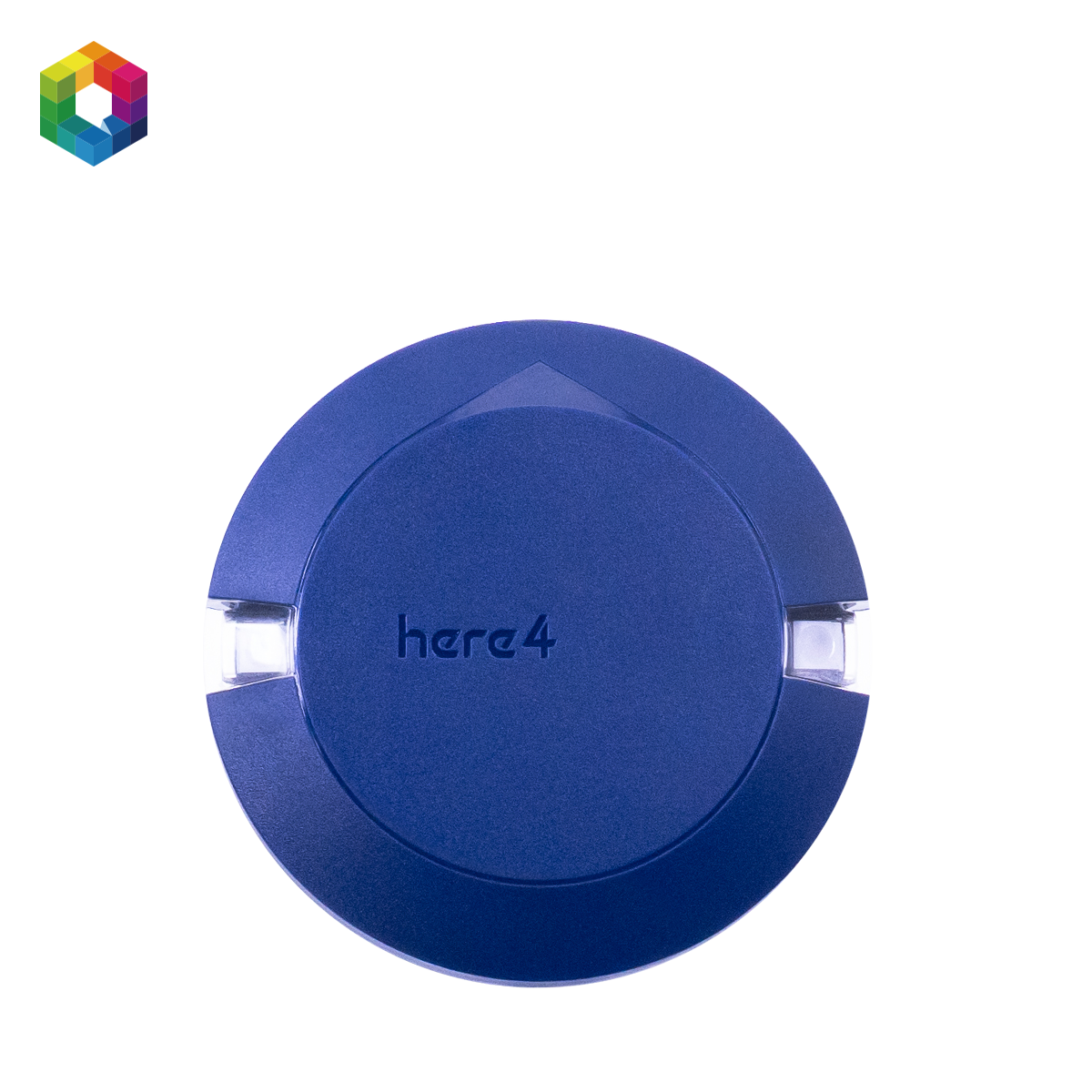

Here4 Blue Multiband RTK GNSS with NRF 2.4GHz Radio

The Here4 Blue Multiband RTK GNSS is a professional-grade navigation module by CubePilot designed for precision sUAS (small Unmanned Aircraft Systems) applications.

MFR Part #: CP-06279

$255.00

Qty:

Specifications
Parts List

Key Technical Specifications

Dual-Band GNSS: Utilizes the u-blox F9P L1/L5 receiver for centimeter-level accuracy and rapid RTK fix times (Cold Start: 25s; Hot Start: 2s).
Satellite Support: Compatible with GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS.
Processor: Powered by a dual-core STM32H757 processor (500 MHz).
Integrated Sensors: Features built-in IMUs (ICM42688 + RM3100) and a MS5611 barometer.
Versatile Connectivity: Supports DroneCAN FD for communication and includes 8 PWM/BDSHOT outputs, allowing it to function as a peripheral controller.

Radio & Wireless Features

NRF 2.4GHz Radio: Specifically integrated for Remote ID (Drone-ID) broadcasting and DroneCAN telemetry in closed systems.
Bluetooth 5.2: Enables wireless configuration, data access, and firmware updates via compatible mobile devices.

STEM BOT Pro Kit - Parts List

(Download to View STEM BOT Parts List as PDF)

Note: 3D CAD files for all parts are available at www.studica.com/studica-robotics-resources

Controllers included in the STEM BOT Pro Kit:

VMX Robotics Controller
- The Studica Robotics VMX Robotics Controller can be used an a Robot Control System or Vision/Motion processor, supporting Java and C++. The controller integrates the navX-IMU, Gigabit Ethernet, USB3.0 ports and built-in Wifi and Bluetooth.
- Highly-integrated, inexpensive, WiFi-enabled, multi-core Linux computing platform with lots of USB IO for expansion.
- 32-bit ARM Microcontroller incorporating sophisticated I/O and digital communications engines
- Low-cost MEMs Inertial Measurement Units (IMUs)
- Powerful software providing rich libraries and tools for developing robot control software in C++, Java
- CAN bus for high-speed, real-time communication between devices
Titan Quad Motor Controller
- The Studica Robotics Titan Quad Motor Controller is a powerful, 4-channel CAN-based motor controller with a built-in fuse-box (for DC motors up to 20A).

Key Technical Specifications

Dual-Band GNSS: Utilizes the u-blox F9P L1/L5 receiver for centimeter-level accuracy and rapid RTK fix times (Cold Start: 25s; Hot Start: 2s).
Satellite Support: Compatible with GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS.
Processor: Powered by a dual-core STM32H757 processor (500 MHz).
Integrated Sensors: Features built-in IMUs (ICM42688 + RM3100) and a MS5611 barometer.
Versatile Connectivity: Supports DroneCAN FD for communication and includes 8 PWM/BDSHOT outputs, allowing it to function as a peripheral controller.

Radio & Wireless Features

NRF 2.4GHz Radio: Specifically integrated for Remote ID (Drone-ID) broadcasting and DroneCAN telemetry in closed systems.
Bluetooth 5.2: Enables wireless configuration, data access, and firmware updates via compatible mobile devices.
