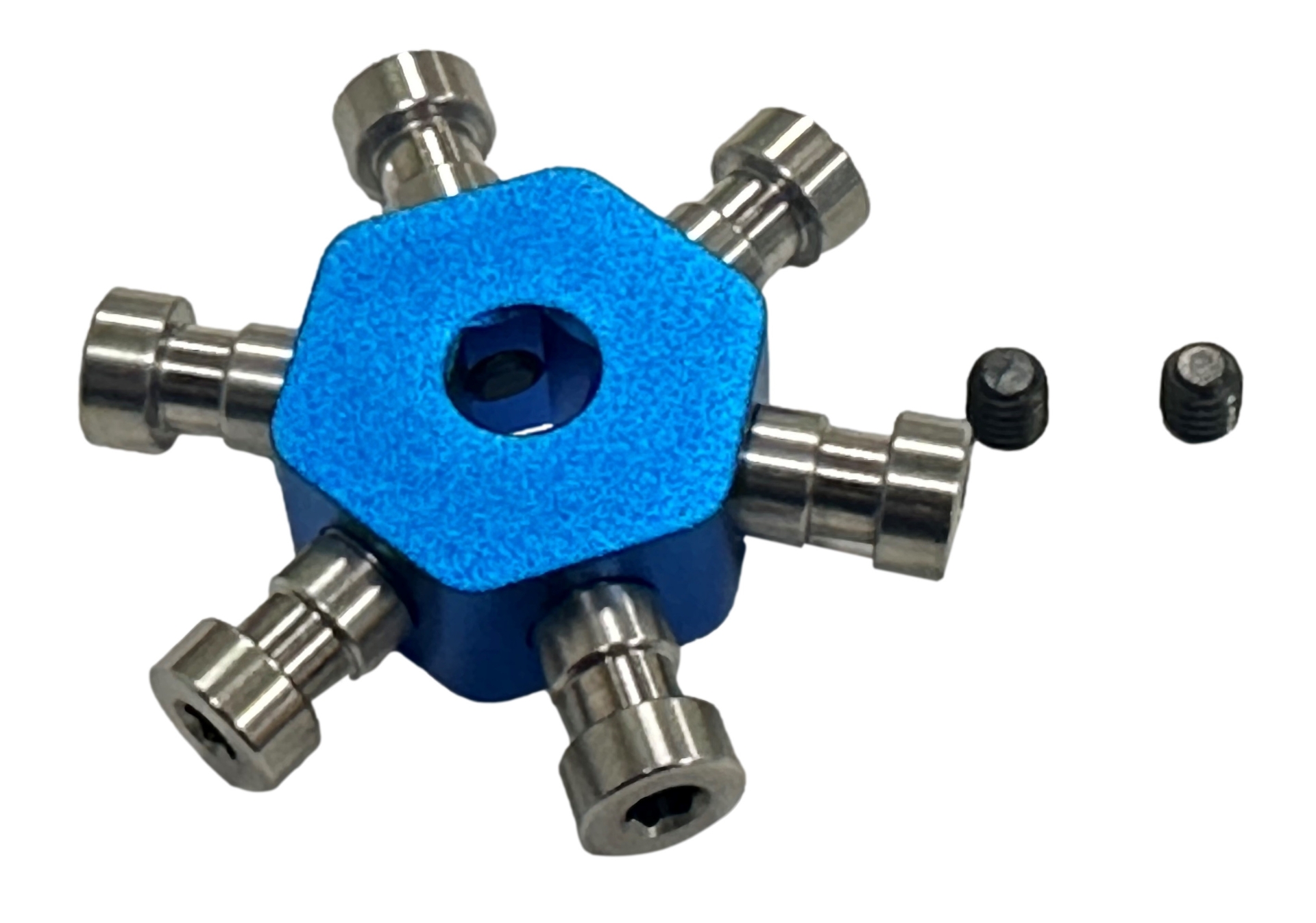

Intake Hex-Shaft Hub Kit

The Studica Robotics Intake Hex-Shaft Hub Kit can be used to create intake systems and is ideal for the FIRST Technical Challenge (FTC) and World Robotics Olympiad (WRO). Can be used with the Silicone Rubber Tubing #76410 (sold separately).

MFR Part #: 70210H

$7.99

Qty:

Specifications
Parts List

Specifications:

Main piece
- hex width: 20.78mm*10.0mm thick
- 6*M6 tapped holes
- 1*M4 tappped hole for M4 set screw
- 6.0mm Diameter D Hole
- Material AL6061-T6
- Φ7.5mm*14.0mm
Pins
- 6PCS in a pack
- M6*4.0mm thread
- Material SS303

STEP file

STEM BOT Pro Kit - Parts List

(Download to View STEM BOT Parts List as PDF)

Note: 3D CAD files for all parts are available at www.studica.com/studica-robotics-resources

Controllers included in the STEM BOT Pro Kit:

VMX Robotics Controller
- The Studica Robotics VMX Robotics Controller can be used an a Robot Control System or Vision/Motion processor, supporting Java and C++. The controller integrates the navX-IMU, Gigabit Ethernet, USB3.0 ports and built-in Wifi and Bluetooth.
- Highly-integrated, inexpensive, WiFi-enabled, multi-core Linux computing platform with lots of USB IO for expansion.
- 32-bit ARM Microcontroller incorporating sophisticated I/O and digital communications engines
- Low-cost MEMs Inertial Measurement Units (IMUs)
- Powerful software providing rich libraries and tools for developing robot control software in C++, Java
- CAN bus for high-speed, real-time communication between devices
Titan Quad Motor Controller
- The Studica Robotics Titan Quad Motor Controller is a powerful, 4-channel CAN-based motor controller with a built-in fuse-box (for DC motors up to 20A).

Specifications:

Main piece
- hex width: 20.78mm*10.0mm thick
- 6*M6 tapped holes
- 1*M4 tappped hole for M4 set screw
- 6.0mm Diameter D Hole
- Material AL6061-T6
- Φ7.5mm*14.0mm
Pins
- 6PCS in a pack
- M6*4.0mm thread
- Material SS303

STEP file
