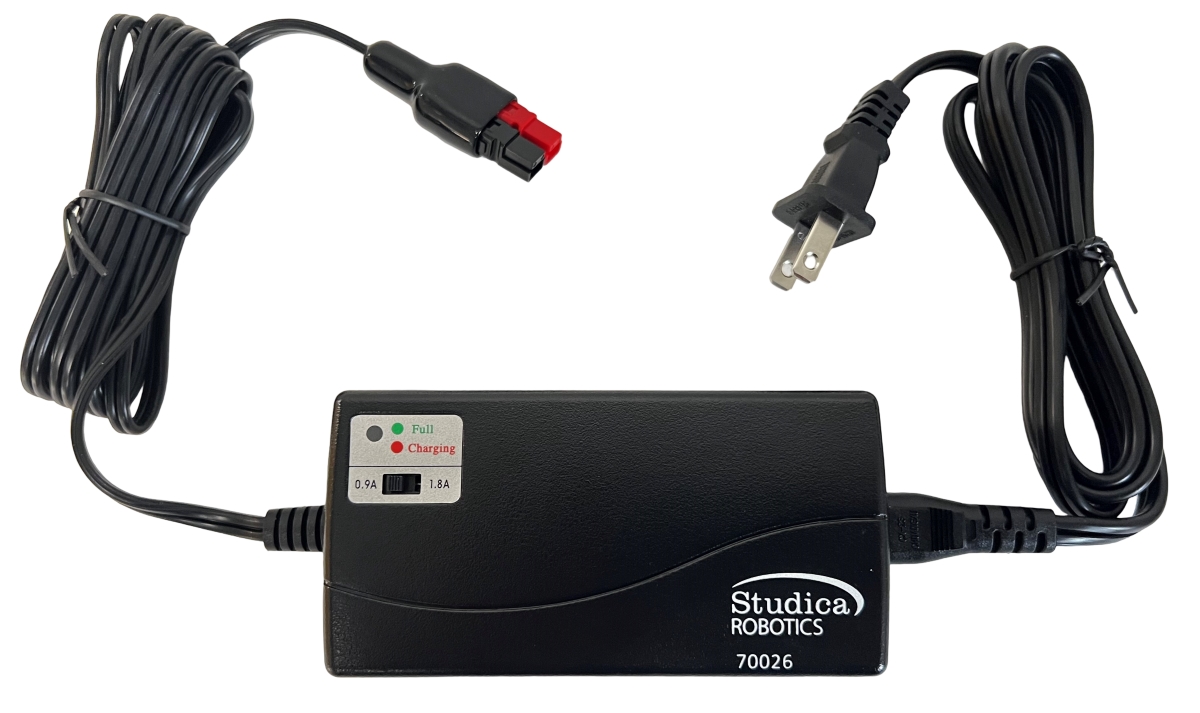

NiMH Battery Pack Charger PP45 ARES

The Studica Robotics 12V 30000mAh NiMH (nickel metal hydride) Battery Pack, PP45 - ARES in Black comes with a w/20 amp fuse. It is a 10-cell, 12-volt rechargeable battery pack.

The Studica Robotics NiMH Battery Pack Charger, PP45, is required to charge the battery.

The Studica VMX is a powerful robot controller,

• Enables Tele-op and autonomous control
• Programmable in Java, C++, Python, LabVIEW, and ROS
• Integrates the navX-IMU, a Linux based controller, Gigabit Ethernet, USB3 ports and built-in Wifi/Bluetooth.
• Can be used an a Robot Control System or Vision/Motion processor
• Supports Open CV, Tensor Flow, SLAM (Simultaneous Localization and Mapping
• Step Files

The Studica VMX leverages five recent key technology developments,

• Highly-integrated, inexpensive, WiFi-enabled, multi-core Linux computing platform with lots of USB IO for expansion
• 32-bit ARM Microcontrollers incorporating sophisticated I/O and digital communications engines
• Low-cost MEMs Inertial Measurement Units (IMUs)
• Powerful software providing rich libraries and tools for developing robot software in C++, Java
• CAN bus for high-speed, real-time communication between devices

The Studica VMX Technology Enables,

• Far richer development environments and tools
  • Because VMX is much more than a robot controller – it is a powerful, Linux-based   desktop computing platform with network/monitor/keyboard/mouse support.
• Very powerful software features
  • State-of-the-art software development GUIs (e.g., VS Code) libraries and tools (drive-  train kinematics, path-planning, vision processing, autonomous navigation,   performance data acquisition/playback)
• Access to cutting-edge sensors (for use outside the competition)
  • VMX’s multitude of modern digital communications interfaces and Linux-based   operating system allow users to directly access most modern devices (e.g., Intel   RealSense tracking and depth cameras and LIDAR

The Titan Quad Motor Controller is a powerful, 4-channel CAN-based motor controller with a built-in fuse-box (for DC motors up to 20A).

Features:

• 4 x Hardware encoder ports – one for each motor
• 2 limit switch ports for each motor
• Fuse box to set manual current limits
• 2x Power extension ports to power other 12VDC devices. I.E.
  • VMX Robotics Controller
  • Servo Power Module
• Built in LED Controller
• 6A power supply for LED’s
• i2c communication port to control LED Controller
• USB ports are updated to USB-C to better support todays cable standards
• Step File


The Studica U Channel is 3mm thick and has a 48mm x 48mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material: 6061-T6 Aluminum
• Thickness - 3mm
• Height - 48mm
• Width - 48mm
• Length - 48mm
• Weight - 40gms each
• Hole pattern - 1
• Step File

The Maverick 12V DC Gear Motor 61:1 w/Encoder was designed for strength and endurance.


Specifications:

• Voltage:                      12V DC
• Amperage                   11A(full stall). Nominal operating current is 2.2A, at 12V it's 26.4W
• Wattage                      132W
• Length:                        134mm
• Gear Ratios:                 61:1
• Shaft Diameter:            6mm D-Shaft
• Diameter:                     37mm
• Stall Torque:                 50.5 kg-cm (702 oz-in)
• RPM:                             100
• Encoder:                       Hall effect/Quadrature, 6CPR, 1,464 pulse per revolution
• Weight:                          326 grams
• Power cable:                 PP45, 45cm, 14AWG
• Encoder Cable:             45cm, 22AWG 4-pin
• Step File

nominal so operating current is 2.2A so at 12V this would 26.4W

This straightforward power switch provides seamless on/off control between a battery and your device. Equipped with a convenient mounting bracket and pre-crimped wires, it ensures easy installation. The switch comes with UL, cURus, TUV and CQC ratings. The cables are 30cm, 12AWG. The connectors are Powerpole 45A(PA45B2-H).

• Switch Plate Step File


• Switch Step File

The FTC Starter Kit for 2024-2025, from Studica Robotics, is a robust training kit that allows students to create, build, and prototype their own robot designs, making it an ideal solution for hands-on STEM learning activities and prepping students for robotics competitions like FTC. This kit includes over 1,500 parts for building a robot for competitions or the classroom (controllers not included).

Download BOM
