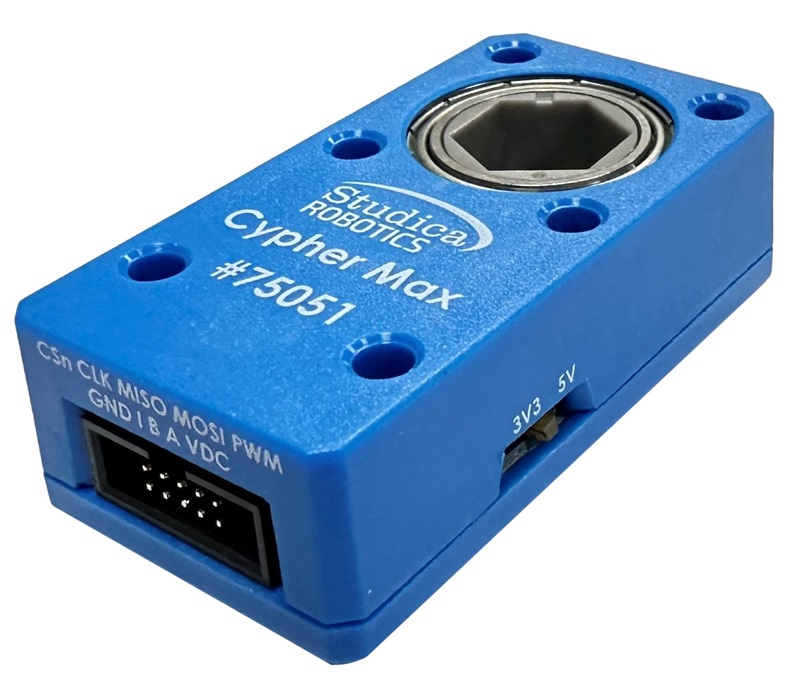

    Cypher Max

    Elevate your robotic precision to new heights with the Studica Cypher Max – the ultimate fusion of absolute and incremental encoder technology in one user-friendly package. Whether you're orchestrating intricate arm movements or implementing a sophisticated swerve mechanism, the Cypher Max provides the rotational angle accuracy you crave, boasting an impressive ± 1.2° precision with its PWM absolute output.



    But the Cypher Max doesn't stop there. When it comes to odometry or RPM calculations for a shaft, the ABI incremental output, featuring a count of 2048 per rotation, ensures unparalleled control and near-perfect accuracy. The hub design of the Cypher Max adds another layer of versatility, accommodating a base 3/8" Hex shaft with inserts for other sizes, allowing you to measure precisely where you need it. Upgrade your robotic arsenal with the Cypher Max – where precision meets perfection.

    Included Cables:

    • Absolute Cable (1.27mm to 2.54mm 3-pin Female Dupont)
    • Quadrature Cable (1.27mm to 2.54mm single-pin Female Dupont)
    • FTC Cable (1.27mm to 4-pin JST PH)
    • Programming Cable (1.27mm to 2.54mm single pin Female Dupont)

    Included Inserts:

    • 7mm Hex
    • 5mm Hex
    • 6mm D-Shaft
    MFR Part #: 75051
    $47.99
    Availability: In stock

    Specifications:

    • Quadrature Output: A, B, I
      • 2048 Counts per Revolution
    • Absolute Output: PWM
      • Resolution: 12bit
      • Frequency: 546 Hz (Typ), 490 Hz (min), 603 Hz (max)
      • Frame Width: 4119 PWM Pulses
        • Start: 12 PWM Pulses (All High)
        • Error: 4 PWM Pulses (Low if error)
        • Data: 4095 Pulses
        • End: 8 PWM Pulses (All Low)
    • 3.3V and 5V compatible (selectable via switch on side)
    • Max current draw: 100mA
    • Factory calibrated zero position.
    • Connector: 10 Position 1.27mm Right Angle
    • Default Bore: 9.525mm (0.375”) Hex
