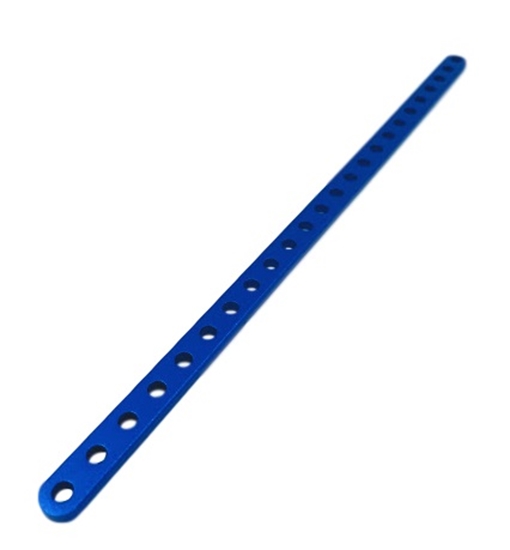

    192mm Flat Beam

    The Studica Flat Beam is 3mm thick and 8mm wide. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

    Specifications:

    • Material: 6061-T6 Aluminum
    • Thickness - 3mm
    • Width - 8mm
    • Length - 192mm

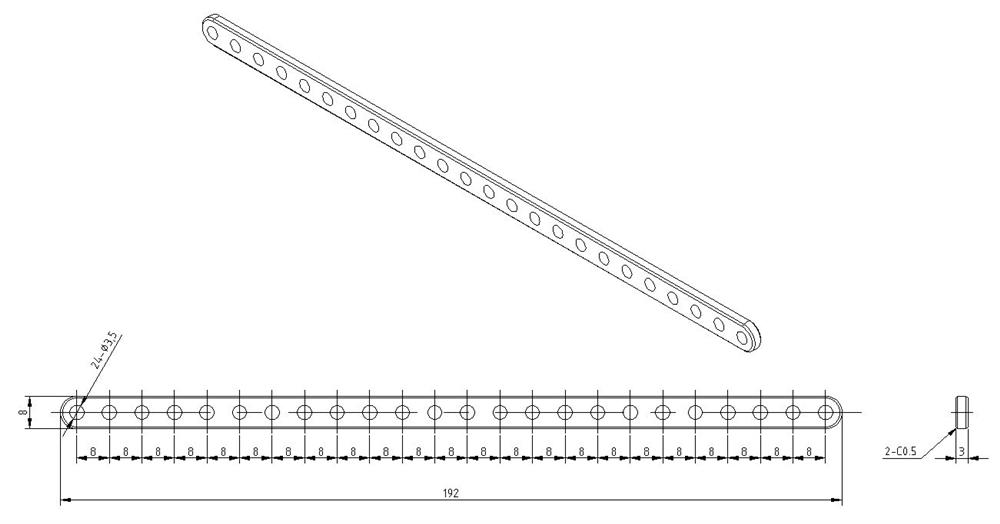

    • Step File



    MFR Part #: 76045
    $2.39
    Availability: 720 in stock

    Write your own review
    • Product can be reviewed only after purchase
    • Only registered users can write reviews
    *
    *
    • Bad
    • Excellent
