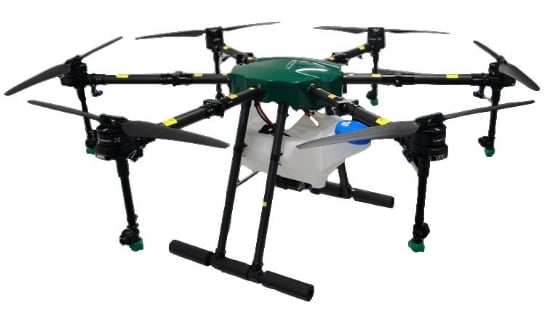

WS5100 UAV Agritech Kit

The WS5100 Features a hexacopter design with six high-efficiency brushless motors for stable and balanced flight. It features a durable carbon fiber frame and foldable arms for easy transport and storage. It integrates components 6, support payloads of up to 10kg

As a training platform for UAV technician course, it can be configured for medium to large-scale agricultural spraying with uniform droplet distribution using the supplied 10L tank and pump. It can also be customized using the supplied delivery bay for use as a multipurpose UAV.

MFR Part #: 90020

Request a Quote

Qty:

Specifications

Motors - X6, 6215
Propellers - 2480 carbon fiber
Flight Controller - Cube Orange/+ with ADSB
Tank Capacity - 10 Liters
Number of Rotors - 6 (Hexacopter)
Material - Carbon Fiber + High-Density Plastic
Flight Time - 15–20 minutes (based on payload)
Spray Width - 3 to 5 meters (adjustable)
Nozzles - 4–6 Anti-drip Nozzles
Control Range - Up to 1.5 km
Battery Capacity - 22000mAh (Li-Po 6S or 12S recommended)
RTK/GPS - Optional RTK Module for Precision
Obstacle Avoidance - Radar / Ultrasonic (Optional)
Foldable Arms - Yes
Payload Max - 10–12 kg
Frame Weight - Approx. 7–8 kg (without battery and tank)

Note: The UAS is compatible with 12S Tattu batteries and can be equipped with GPS Navigation and obstacle avoidance.

Motors - X6, 6215
Propellers - 2480 carbon fiber
Flight Controller - Cube Orange/+ with ADSB
Tank Capacity - 10 Liters
Number of Rotors - 6 (Hexacopter)
Material - Carbon Fiber + High-Density Plastic
Flight Time - 15–20 minutes (based on payload)
Spray Width - 3 to 5 meters (adjustable)
Nozzles - 4–6 Anti-drip Nozzles
Control Range - Up to 1.5 km
Battery Capacity - 22000mAh (Li-Po 6S or 12S recommended)
RTK/GPS - Optional RTK Module for Precision
Obstacle Avoidance - Radar / Ultrasonic (Optional)
Foldable Arms - Yes
Payload Max - 10–12 kg
Frame Weight - Approx. 7–8 kg (without battery and tank)

Note: The UAS is compatible with 12S Tattu batteries and can be equipped with GPS Navigation and obstacle avoidance.
