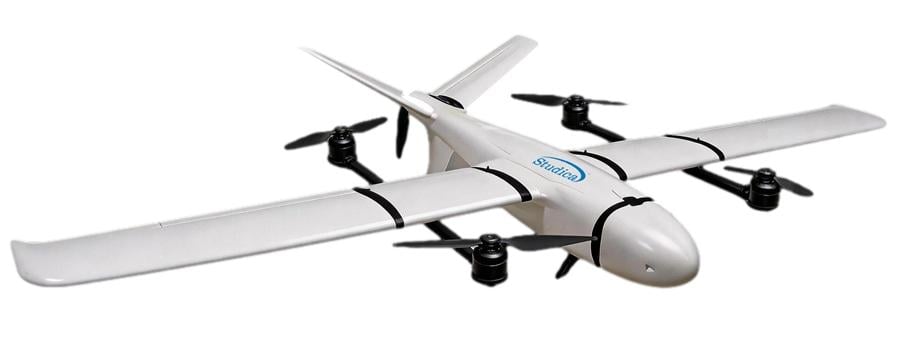

WSVTOL Kit

The WSVTOL kit is a versatile and advanced vertical take-off and landing (VTOL) fixed-wing drone designed for multiple applications, including inspection, surveying, mapping, and monitoring. With a wingspan of 2180mm and a wing area of 53dm², it offers stable and efficient flight performance.

The VTOL operates at a cruising speed of 17-22m/s and can reach a ceiling altitude of 6500m, making it suitable for high-altitude missions.

Key specifications include a take-off weight of less than 7kg, a payload capacity of up to 1kg, and impressive endurance capabilities: 136 minutes for mapping and 125 minutes for monitoring, with a respective range of 144km and 126km. The drone is built from durable materials such as EPO, carbon fiber, aviation aluminum alloy, and engineering plastics, ensuring robustness and reliability.

MFR Part #: 90010

Request a Quote

Qty:

Specifications

Wingspan - 2180mm
Wing area - 53dm²
Cruising speed - 17-22m/s
Stall airspeed - 12m/s
Maximum climb angle - 3.5°
Maximum roll angle - 30°
Take off weight - <7kg
Ceiling altitude - 6500m
V tail angle - 28° up, 20° down
Working temperature - -10°C-50°C
Packing box size - 1100x350x430mm
Vertical arm - 755mm (including motor base)
Body height - 255mm (including tripod)
Body length - 1140mm

Includes:

1x X3520 KV500 motor
1x 6S 100A Brushless ESC
1x Propeller APC1510
4x KV460 disc motor
4x 6S 50A Brushless ESC
2x Carbon Fibre Forward and Reverse Propeller Pairs 1555
4x Fixed Wing Servo
1x 3S-14S UBEC 5.3V10A
1x Wing Terminal Blocks
1x Wiring Kit
1 X Power Module
Cube Orange
RC Controller
Airspeed Sensor

Recommended additional parts:

Battrry suggestion 6S 16000mAh
