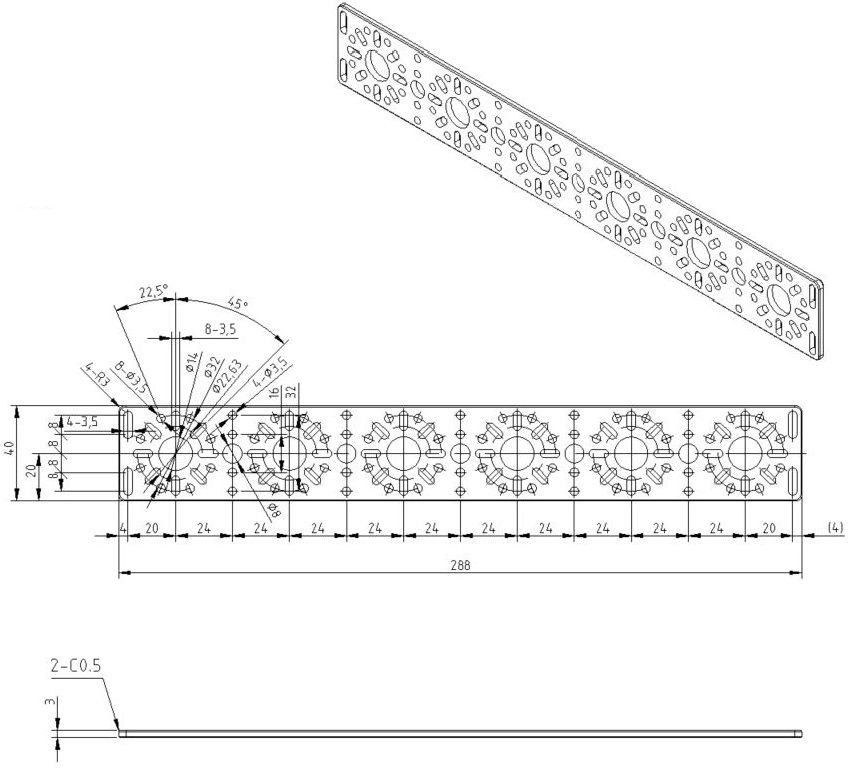

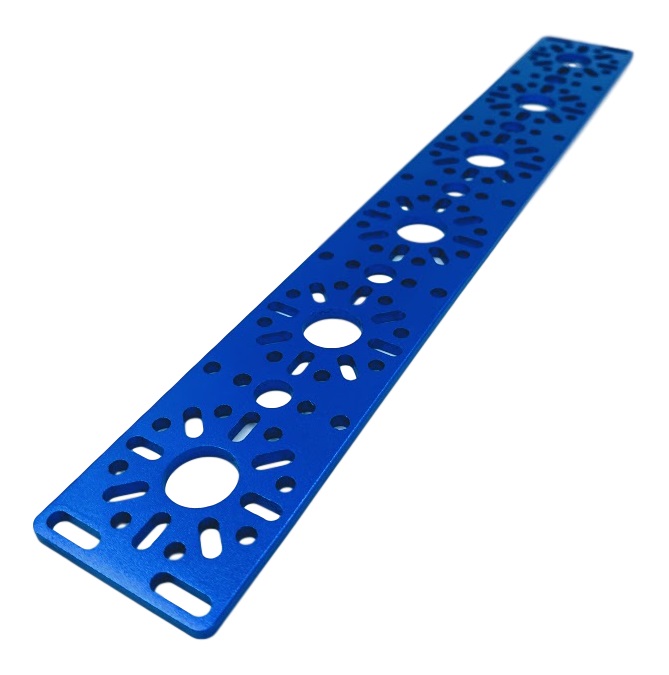

    288mm x 40mm Flat Bracket (2 pack)

    The Studica Flat Bracket is a very strong  3mm x 40mm wide. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

    Specifications:

    • Material: 6061-T6 Aluminum
    • Thickness - 3mm
    • Width - 40mm
    • Length - 288mm
    • Hole Pattern - 6
    • Step File



    MFR Part #: 76061-2
    $13.59
    Availability: 1028 in stock

    Write your own review
    • Product can be reviewed only after purchase
    • Only registered users can write reviews
    *
    *
    • Bad
    • Excellent

    Customers who bought this item also bought

    L Bracket (2 pack)

    #76087-2
    $5.99
    ( 609 In stock)

    Made from 3mm thick heavy 6061-T6 Aluminum, the L Bracket is 48mm x 48mm and is used outside the U Channel or Low profile channel. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

    Specifications:

    • Material - Anodized 6061-T6 Aluminum
    • Thickness - 3mm
    • Step File



    Inside L Bracket (2 pack)

    #76089-2
    $5.99
    ( 1040 In stock)

    Made from 3mm thick heavy 6061-T6 Aluminum, the Inside L Bracket is 42mm x 45mm and is used inside the U Channel or Low profile channel.As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

    Specifications:

    • Material - Anodized 6061-T6 Aluminum
    • Thickness - 3mm
    • Step File



    End Piece Plate (2 pack)

    #76143-2
    $9.99
    ( 766 In stock)

    The Studica End Piece Plate is commonly fastened to the inside end of the U Channel. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

    Specifications:

    Material: 6061-T6 Aluminum





    Servo Horn 25T

    #76148
    $3.99
    ( 977 In stock)

    The Servo Horn 25T is made of anodized 6061-T6 Aluminum and is used with the Multi-Mode Smart Servo (75002) and the Studica building structure.

    Motor Mount Clamp Kit

    #76141
    $10.99
    ( 67 In stock)

    Use the Motor Mount Clamp kit when fastening motors on body and attaching kit to channel and other structure.



    6mm Servo Hub 25T

    #76149
    $5.99
    ( 76 In stock)

    The 6mm Servo Hub 25T is made of anodized 6061-T6 Aluminum and is used to connect a servo motor to a D-Shaft axel.

    Servo Mount Flat Plate

    #76145
    $6.49
    ( 129 In stock)

    The Servo Mount Flat Plate is one option to mount the Multi-Mode Smart Servo (75002) to the Studica building structure.
