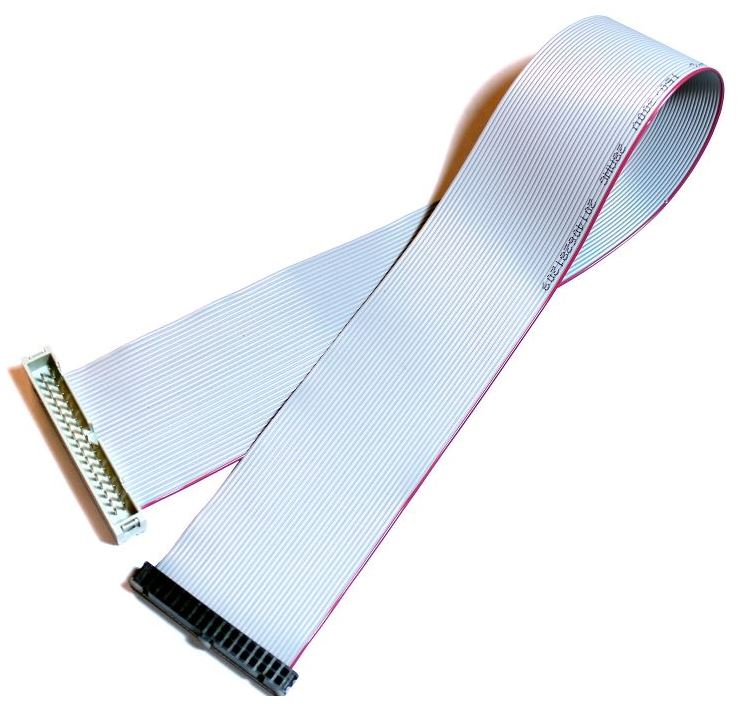

34 Pin MXP extender cable - 8 inch

Includes 6 bits,

• Slotted 3.3
• Phillips: OHO
• Hex 1/16inch
• Hex 3/32inch
• Hex 7/64inch

The WSC2022SE Gurney includes the following items,

• Gurney Build Instructions -  Download
• Interactive Viewer - Open
• Gurney Step file - Download

The Studica Multi-Mode Smart Servo features all-steel gears and large amounts of torque. This angular programmable Servo can fill a variety of roles on your robot or project. In standard mode, it operates on a +/- 150-degree range. Using the Studica Smart Robot Servo Programmer (sold separately) the Multi-mode Smart Servo can be configured to run in continuous, standard, and custom angular mode. In continuous rotation mode, the servo will have proportional speed control based on the PWM signal that you send with your servo controller.


Specifications:

• Type:                             Metal Brush Motor
• Horn Gear Spline:       25T (5.9mm)
• Size:                               40mm x 20.1mm x 38.3mm
• Weight:                          65g
• Maximum Speed:        62RPM at 6V
• Stall Torque:                 20kg.cm at 6V
• Voltage:                         6-7 4V
• Cable:                             22AWG, 75cm
• Step File

The 75mm Drive Wheel can be used as a simple wheel providing good traction on carpet and tile flooring. They can also be used for intake systems.

Use with 1/2" hex shaft of use 6mm Shaft Hub to use connect 6mm D-Shaft Axles.

Specifications:

• Diameter:   75mm
• Axial width:  12.5mm
• Hub:  1/2" Inner Hex
• Inner Material: Molded Plastic in Yellow
• Outer Material: TPU Polyurethane in Black
• Outer Material Durometer: 60A
• Weight: 0.05kg
• Step File

May be used with 6mm D-Shape Shaft to secure wheels in their position.

Specifications:

• Φ20.0mm*8.0mm thick
• 1*M3 thread for M3 SHCS on the clamp side
• Φ6.0mm D hole
• AL6061-T6
• Step File

The 20 Tooth GT2-6mm Timing Belt Pulley can be used with any of the GT2 belts.

Specifications:

• 20 Tooth Timing Pulley
• 6mm Bore
• Material: 6061 T6 Aluminum
• Step File
