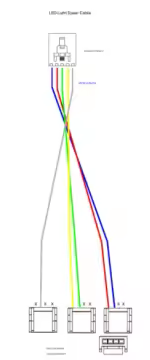

LED Light Tower Cable for BASE Robot

The Studica Multi-Mode Smart Servo features all-steel gears and large amounts of torque. This angular programmable Servo can fill a variety of roles on your robot or project. In standard mode, it operates on a +/- 150-degree range. Using the Studica Smart Robot Servo Programmer (sold separately) the Multi-mode Smart Servo can be configured to run in continuous, standard, and custom angular mode. In continuous rotation mode, the servo will have proportional speed control based on the PWM signal that you send with your servo controller.


• Step File

The Servo Horn 25T is made of anodized 6061-T6 Aluminum and is used with the Multi-Mode Smart Servo (75002) and the Studica building structure.

• Step File

Our improved and  stronger 12-volt DC motor with 100 rpm and 708 oz-in. of torque. The motor features a built-in, high-resolution Hall effect encoder for precise motor control and comes with an encoder cable.

A 61:1 gearbox comes standard.

Output Counts per Revolution of Output Shaft (cpr) 1,464 pulses

Used for WorldSkills, the Studica 12V 3,000mAh NiMH (nickel metal hydride) Battery Pack, PP45 in comes with a w/20 amp fuse. It is a 10-cell, 12-volt rechargeable battery pack.

The Studica NiMH Battery Pack Charger, PP45, is required to charge the battery.

Specifications,

• Dimensions: 5 x 2.1 x 2.1 inches (115 mm x 45 mm x 50 mm)
• Weight: 1.32lbs (579 g)
• 12V, internal 8-9mΩ per cell
• Built-in 20-amp replaceable fuse for safety
• 10-cell pack provides 1,800-mAh capacity
• PP45 connector for easy and safe connection to controller
• Step File

The Studica Robotics 6mm Hex Shaft Face Bearing Block can be mounted on any channel and bracket allowing for a 6mm ID through hole for 6mm shafts (axles). The block has a permanently installed Standard Sealed Bearing and has 8 x M3 tapped through holes for easy mounting.

The 100mm Omni Wheel provides rotational and sideways 360° maneuverability.  Great for omni directional movement and rotation, easy direction control and tracking, and for fast turning,
