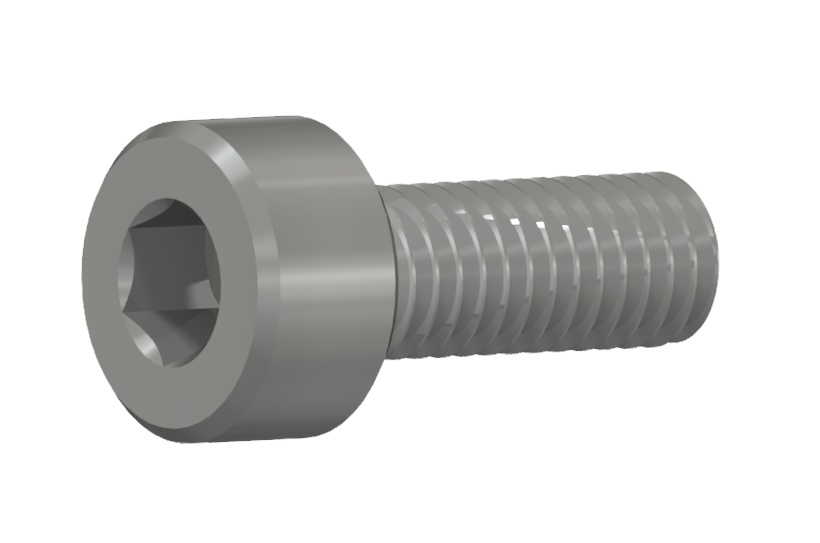

M3 x 6mm Socket Head Cap Screw (pack of 50)

M3 x 25mm Socket Head Cap Screw (pack of 50), Zinc Plated.

M3 x 12mm Socket Head Cap Screw (pack of 100), Zinc Plated.

• Step File

M3 x 10mm Socket Head Cap Screw (pack of 100), Zinc Plated.

• Step File

• 42.0mm*42.0mm*11.3mm thick
• 16*M3*8.0mm thread
• M3 pass through holes
• SHCS sit flush
• Material - AL6061-T6
• Step File

Used to change motor to axle motion 90 degrees. This can be used in between the U-channel.

Specifications:

• Material: Steel
• Number of teeth: 30
• Set of 2 for 1-1 drives
• Step File

May be used with 6mm D-Shape Shaft to secure wheels in their position.

Specifications:

• Φ20.0mm*8.0mm thick
• 1*M3 thread for M3 SHCS on the clamp side
• Φ6.0mm D hole
• AL6061-T6
• Step File

The Studica U Channel is 3mm thick and has a 48mm x 48mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material: 6061-T6 Aluminum
• Thickness - 3mm
• Height - 48mm
• Width - 48mm
• Length - 336mm
• Weight -372gm
• Hole pattern - 9
• Step File
