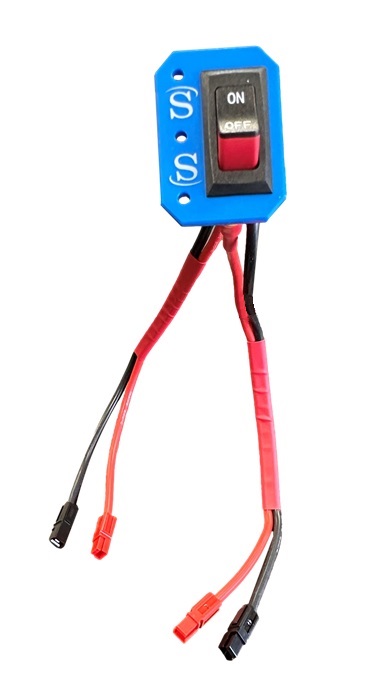

On/Off Power Switch Kit

Made from delrin in blue, this M3 Screw Spacer has a 3.2mm ID x 5.5mm OD x 1mm thick. Use it for any M3 screw.

Rev up your robot's performance with the FTC Power Block, a game-changer in facilitating seamless power connections for various devices throughout your FTC robot. This powerhouse accessory ensures that your robot operates at its full potential, delivering unmatched reliability and efficiency. Say goodbye to power-related hiccups and hello to a smoother, more robust robot performance with the FTC Power Block.

Specifications:

• Input: XT30 Male
• Output: XT30 Female
• Total Connections: 9
• Max Current: 20A Shared

Step File

The Studica Linear Servo RC Actuator 140S-190N is a new Servo motor which has a stroke of 140mm and a max force of 190N. It works the same way as the any standard rotary servo but in a linear movement. It uses the same 2.54mm Dupont 3-Pin Female wire connector and can be controlled with an RC receiver or any device that controls a servo. Includes mounting brackets.

• For 5.5mm nuts
• CRV material
• heat treatment
• surface matt chrome plated
• 100mm exposure shank
• socket head cold heading treatment

The Studica Multi-Mode Smart Servo features all-steel gears and large amounts of torque. This angular programmable Servo can fill a variety of roles on your robot or project. In standard mode, it operates on a +/- 150-degree range. Using the Studica Smart Robot Servo Programmer (sold separately) the Multi-mode Smart Servo can be configured to run in continuous, standard, and custom angular mode. In continuous rotation mode, the servo will have proportional speed control based on the PWM signal that you send with your servo controller.


• Step File

The Maverick 12V DC Gear Motor 61:1 w/Encoder was designed for strength and endurance.


Specifications:

• Voltage:                      12V DC
• Amperage                   11A(full stall). Nominal operating current is 2.2A, at 12V it's 26.4W
• Wattage                      132W
• Length:                        134mm
• Gear Ratios:                 61:1
• Shaft Diameter:            6mm D-Shaft
• Diameter:                     37mm
• Stall Torque:                 50.5 kg-cm (702 oz-in)
• RPM:                             100
• Encoder:                       Hall effect/Quadrature, 6CPR, 1,464 pulse per revolution
• Weight:                          326 grams
• Power cable:                 PP45, 45cm, 14AWG
• Encoder Cable:             45cm, 22AWG 4-pin
• Step File

nominal so operating current is 2.2A so at 12V this would 26.4W

The Studica End Piece Plate is commonly fastened to the inside end of the U Channel. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

Material: 6061-T6 Aluminum

• Step File
