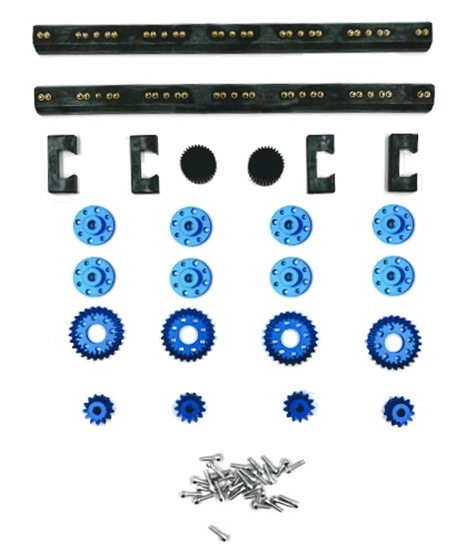

    Pro Gear Pack

    $170.00

    Includes,

    • 2 - 13 Tooth Bevel Gear (2 pack)  76223-2
    • 2 - 26 Tooth Bevel Gear (2 pack)  76224-2
    • 4 - 30 Tooth Bevel Gear (2 pack)  76219-2
    • 2 - Rack & Pinion  76170
    • 2 - 6mm Shaft Hub (4 pack)  76284-4
    • 1 - M3 x 12mm Socket Head Cap Screw (pack of 100)  76202-100
    MFR Part #: 70257
    Availability: In stock
    Write your own review
    • Product can be reviewed only after purchasing it
    • Only registered users can write reviews
    • Bad
    • Excellent
