Servo Y-Split Cable

The Studica Analog Module

• Includes JST-SH to JST-GH Cable
• Operating Voltage (VDD): 2.0V-5.5V
• Operating Temperature: -40°C to 125°C
• Operation Modes: Single-Shot, Continuous-Conversion (Default), and Duty Cycling
• Analog Inputs:
  • Measurement Type: Single-Ended (Default)
  • Input Voltage Range: GND to VDD
  • Full Scale Range (FSR): ±.256V to ±6.114V (Default: 2.048V)
• Resolution:
  • 12-bit (Differential) or 11-bit (Single-Ended)
  • LSB size: 0.125mV - 3mV (Default: 1 mV)
• Sample Rate: 128 Hz to 3.3 kHz (Default: 1600SPS)
• Current Consumption (Typical): 150μA-200μA
• I2C Address: 0x48 (Default), 0x49, 0x4A, or 0x4B
• Four unique I2C addresses:
  • 0x48
  • 0x49
  • 0x4A
  • 0x4B
• Step File

Ideal for the myRIO.

• Inside Contact Diameter: 2.1mm
• Outside Contact Diameter: 5.5mm
• Termination Style: Solder Cup
• Voltage Rating: 12 V
• 6 Amp
• 1 meter cord length
• 18AWG or 20AWG wire guage
• DC connector type

Ideal for the myRIO.

• Inside Contact Diameter: 2.1mm
• Outside Contact Diameter: 5.5mm
• Termination Style: Solder Cup
• Voltage Rating: 12 V
• 6 Amp
• 1 meter cord length
• 18AWG or 20AWG wire guage
• DC connector type

Use the Dupont Single Pin - 4 wire - female to female cable with the Ultrasonic Distance Sensor

Specifications:

• Dupont Single Pin
• 4 wire
• female to female cable
• Length: 50cm
• Gauge: 22AWG

The IR Distance Sensor GP2Y0A21YK0F uses a beam of infrared light to reflect off an object to measure its distance. Because it uses triangulation of the beam of light to calculate the distance, it is able to provide consistent and reliable readings which are less sensitive to temperature variation or the object’s reflectivity. The sensor outputs an analog voltage corresponding to the distance of the object, and can easily be read using an inexpensive analog to digital converter (ADC) chip.

Includes 40cm I2C female to TJC8 female cable

• Step File

The JST-GH to JST-GH Cable connects external sensors, breakout boards or other devices.

Detailed Specifications:

• Cable Length: 25 cm
• Connectors: 4-pin JST-GH (2)
• Wire Colors: Black, Red, Blue, Green

The Powerpole Extension Cable is 50cm long and 14AWG wire gauge to handle heavier loads.

This set of 12 pieces includes,

• 2 x 20cm 22AWG Cables with Dupont TJC8 2.54mm 3 pin, female to female connectors
• 2 x 40cm 22AWG Cables with Dupont TJC8 2.54mm 3 pin, female to female connectors
• 2 x 60cm 22AWG Cables with Dupont TJC8 2.54mm 3 pin, female to female connectors
• 6 x 3pin Dupont male to male connectors

·      450mm Length

·      3 position

·      TJC8 MH-FC on one end

·      TJC8 FH-MC on the other end

·      Twisted cable

·      Colors: White, Red, Black (red in middle)

·      24AWG Guage

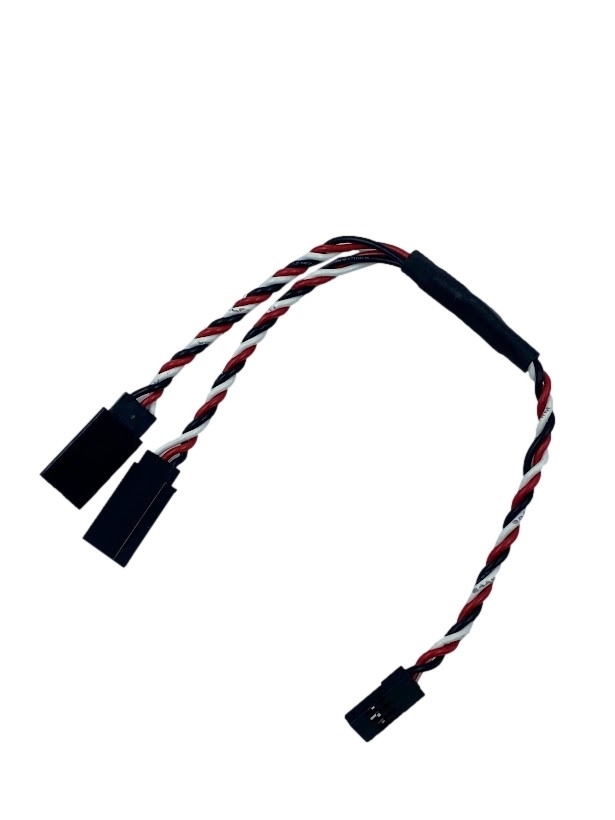

• • 150mm Length
  • 3 Position
  • TJC8 FH-MC on 2 Split Ends
  • TJC8 MH-FC on single end
  • Twisted Cable
  • Colors: White, Red, Black (red in middle)
  • 24AWG Guage

The Titan Cable Pack contains three cables. A 60cm CAN Wire for connecting the Titan Motor Controller to a CAN 2.0B capable device and two (idk the 50cm JST-VH to JST-VH cables for connecting 12VDC power to other devices such as the VMX or Servo Power Block.

• 2 - JST-VH to JST-VH cable
  • 50cm
• 1 - CAN Wire
  • 60cm

USB Cable, Type A to Type C, Blue, 1 Meter, male to male

USB Cable, Type A to Type C, Blue, 2 Meters, male to male

The VMX Battery Adapter cable connects a VMX-pi power connectcor to an external battery supply.

Detailed Specifications:

• Cable Length: 25 cm
• Wire Gauge: 20 AWG
• Connector: JST-VH Wire Colors: Red (power), Black (ground)
• Wire Free-end:  stripped and tinned

Includes:

• 70177 - 4 JST-GH to 4 Pin Dupont Cables (connects a VMX-pi GH signal connector to an external sensor or device).
• 70167 - 1 battery adapter cable (connects a VMX-pi power connector to an external battery supply).
• 70166 - 1 Wallwart cable (cable allows you to connect a VMX-pi to an external 12VDC Wallwart power supply).

The VMX Wallwart Adapter cable connects a VMX power connector to an external 12VDC Wallwart power supply.

Detailed Specifications:

• Cable Length: 25 cm
• Wire Gauge: 20 AWG
• VMX-side Connector: JST-VH Wire Colors: Red (power), Black (ground)
• Wallwart-side Connector:  2.1mm inner diameter, 5.5" outer diameter, center-positive
