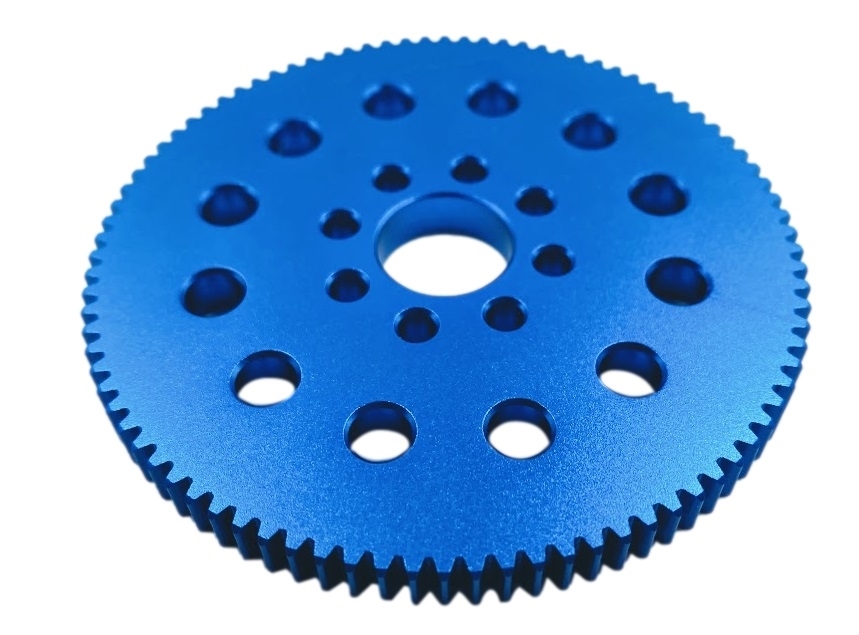

90 Tooth Gear

Specifications:

• Material: 6061-T6 Aluminum
• Thickness: 12mm
• Step File

Used with Studica 100mm Omni wheel for a strong axel hold.

Specifications:

• Material: 6061-T6 Aluminum
• Color: Blue
• Includes clamp screws and screws and nuts for clamping to omni.
• Step File

Note: This product is end of life as we are moving completly to Hex-Shaft.

The Studica Square Beam is 8mm by 8mm. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material -  Anodized 6061-T6 Aluminum
• Holes - 3.5mm diameter spaced 8mm apart
• Length - 48mm
• Step File

The Studica Square Beam is 8mm by 8mm. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material -  Anodized 6061-T6 Aluminum
• Holes - 3.5mm diameter spaced 8mm apart
• Length - 96mm
• Step File

The Studica Flat Beam is 3mm thick and 8mm wide. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material: 6061-T6 Aluminum
• Thickness - 3mm
• Width - 8mm
• Length - 48mm
• Step File

The Studica L-Beam is available in 9 different lengths from 48mm to 432mm. It is strong while light weight. It can be easily cut to your own custom size. The hole pattern matches the hole patterns in the Studica U-Channel, Low Profile U-Channel, and the various plates.

Specifcations,

• Material:  6061-T6 Aluminum
• Length: 48mm
• Width: 14mm
• Height: 14mm
• Thickness: 3mm
• Hole Diameter: 3.5mm
• Weight: 0.009kg
• Step File

The Studica L-Beam is available in 9 different lengths from 48mm to 432mm. It is strong while light weight. It can be easily cut to your own custom size. The hole pattern matches the hole patterns in the Studica U-Channel, Low Profile U-Channel, and the various plates.

Specifcations,

• Material:  6061-T6 Aluminum
• Length: 96mm
• Width: 14mm
• Height: 14mm
• Thickness: 3mm
• Hole Diameter: 3.5mm
• Weight: 0.017kg
• Step File
