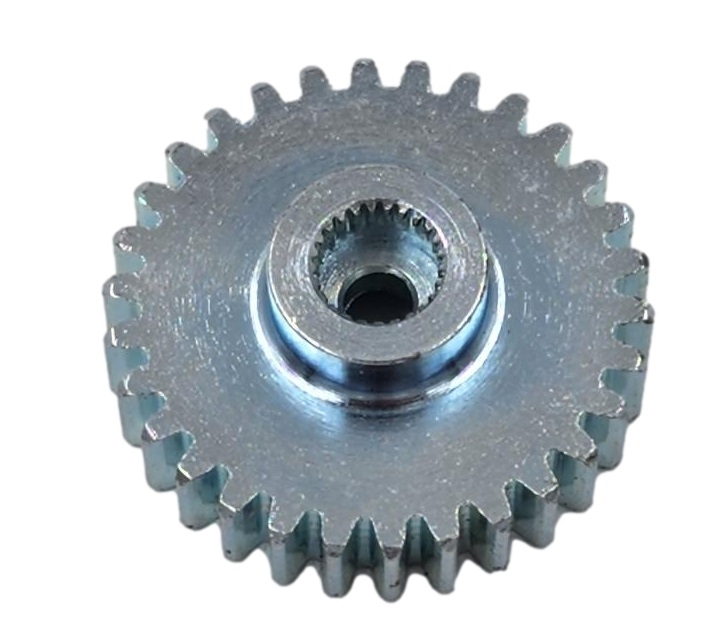

    Servo Spline Gear - 30T Gear, 25T Spline

    Be the first to review this product

    The Studica Servo Spline Gear is a 30 Tooth Gear with a 25 Tooth Spline. It is used with the Studica Multi-Mode Smart Servo or Studica Multi-Mode Smart Servo 200.



    Specifications:

    • Material: Steel Hardened, Zinc plated
    • Step File
    MFR Part #: 76153
    $10.99
    In stock
    Write your own review
    • Product can be reviewed only after purchase
    • Only registered users can write reviews
    *
    *
    • Bad
    • Excellent
