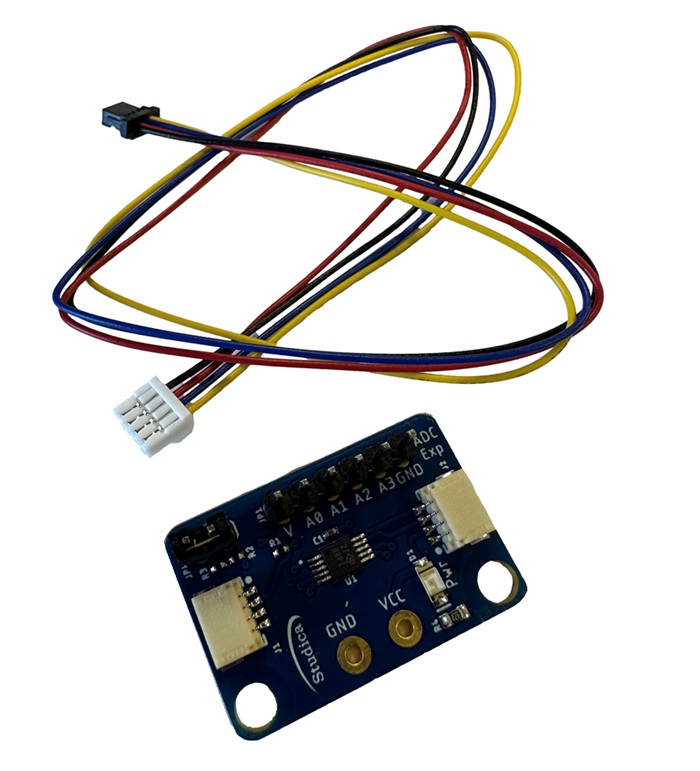

    Analog Module w/JST-SH to JST-GH Cable

    $19.99

    The Studica Analog Module

    MFR Part #: 70755
    Availability: In stock
    Write your own review
    • Product can be reviewed only after purchasing it
    • Only registered users can write reviews
    • Bad
    • Excellent
    Customers who bought this item also bought

    12V 3000 mAh NiMH Battery Pack - PP45

    70018
    #70018
    $44.99

    The Studica 12V 3,000 mAh NiMH (nickel metal hydride) Battery Pack, PP45 comes with a w/20 amp fuse. It is a 10-cell, 12-volt rechargeable battery pac k that brings long-lasting power to motors and electronics that are used in the WorldSkills Mobile Robotics Collection. The Studica NiMH Battery Pack Charger, PP45, is required to charge the battery.

    Specifications,

    • Dimmensions: 5 x 2.1 x 2.1 inches (115 mm x 45 mm x 50 mm)
    • Weight: 1.32lbs (579 g)
    • Built-in 20-amp replaceable fuse for safety
    • 10-cell pack provides 3,000-mAh capacity for longer life
    • PP45 connector for easy and safe connection to controller
    • Step File



    IR Range Sensor Bracket

    40118
    #40118
    $5.99

    Use this bracket to secure the IR Range Sensor to the Studica structure.

    Ultrasonic Distance Sensor

    70753
    #70753
    $17.99
    • Stable, accurate distance measurement
    • High precision, blind spots (3cm) super close
    • A full set of ranging process
    • Step File

    Cobra Line Follower Sensor

    70151
    #70151
    $9.99

    The Cobra Line Follower Array provides 4 X QRE1113 IR reflectance sensor mounted on a 9mm pitch Each sensor is comprised of two parts - an IR emitting LED and an IR sensitive phototransistor. When you apply power to the VCC and GND pins the IR LED inside the sensor will illuminate.

    The Studica Line Sensor Board consists of 4 IR LED/phototransistor pairs, making it a great detector for a line-following robot.  The Line Sensor Board allows the robot to tell objects or surfaces apart based on how dark or light they are. It shines a beam of infrared light out onto the object, and measures how much light is reflected back.

    Each sensor provides a separate analog voltage output. The sensor board is an infrared emitter/receiver that is able to differentiate between a dark surface (with low IR reflectivity – 3.3V to 5V) and a light surface (with high IR reflectivity – 0V to 0.5V). However, this range can vary depended on the installed height of the sensor board.

    The optimum height distance is 3-5 mm; however, the reflectivity values will change depending on distance. A daylight filter is built into the sensor.

    • 5VDC operating voltage (recommended)
    • 70mA supply current
    • Optimal sensing distance: 0.125" (3mm)
    • Step File

    WorldSkills Mobile Robotics Collection Shanghai 2022

    70201
    #70201
    Request a Quote

    The WorldSkills Mobile Robotics Collection – Shanghai 2022 by Studica is the authorized collection for the WorldSkills Mobile Robotics Competition. Featuring the Studica VMX Robotics Controller for WorldSkills, the Titan Quad Motor Controller and Servo Power Block. This comprehensive Collection also includes electronics, accessories, motors, servos, mounts, U-Channel, mounting plates, flat brackets, irregular brackets, and flat beams. You'll also find gears, sprockets, pulleys, belts, axles, slides, rack & pinion, wheels, bushings, bearings, coupling, collars, spacers, screws, nuts, and standoffs. Includes Everything You Need (Over 1500 components).

    Download brochure and BOM

    NiMH Battery Pack Charger - PP45

    70019
    #70019
    $29.99

    The Studica NiMH Battery Pack Charger, PP45, is used to recharge the 12V 3,000 mAh NiMH Battery Pack, PP45

    Specifications

    • Rating AC Input: 100V to 240V AC, 0.6A RMS, 50/60 Hz
    • Rating Output: 7V to 16 VDC
      • 0.9A to 1.8A
    • Protection mode: output short circuit protection and output polarity reverse protection.
    • Temperature range 0C ~+40C (battery pack)
    • Operate Humidity: 5% ~ 90%

    LED Indication

    Red Normal Main Charge mode
    Green Normal Finished / Open mode
    Red / Green Flashing Short Circuit

    Maverick 12V DC Gear Motor w/Encoder

    75001
    #75001
    $28.99

    The Maverick 12V DC Gear Motor 60:1 w/Encoder was designed for strength and endurance.

    Specifications:

    • Voltage:                        12V DC
    • Length:                         134mm
    • Gear Ratios:                 60:1
    • Shaft Diameter:              6mm D-Shaft
    • Diameter:                     37mm
    • Stall Torque:                 50.5 kg-cm (702 oz-in)
    • RPM:                            100
    • Encoder:                        Hall effect/Quadrature, 6CPR, 1,440 pulse per revolution
    • Weight:                          326 grams
    • Power cable:                 PP45, 45cm, 14AWG
    • Encoder Cable:             45cm, 22AWG 4-pin
    • Step File
