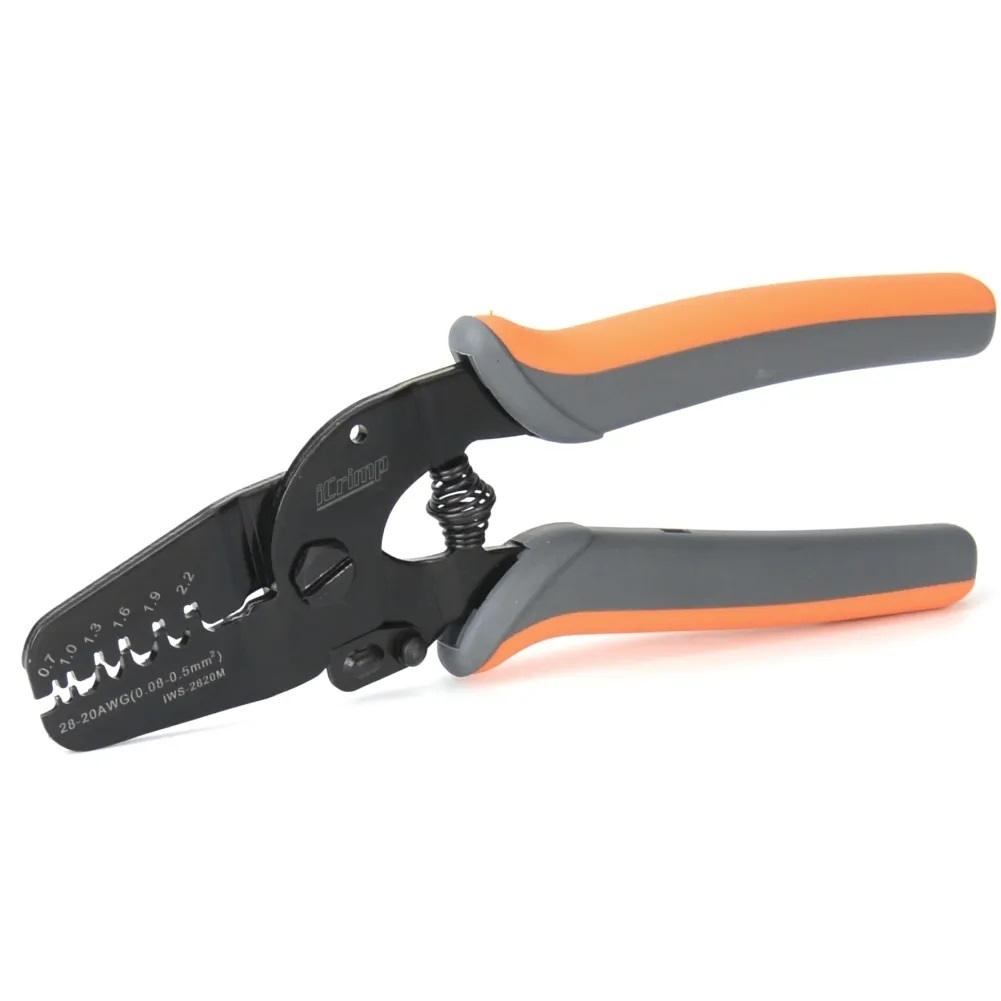

iCrimp Open Barrel Crimper

• Used with 5.5mm Nuts
• 50BV30 ratchet head
• heat treatment
• surface balck finished
• body #45 carbon steel material
• mirror polishing
• product engrave size and laser logo
• length 110mm

• Φ20.0mm*8.0mm thick
• 2*M3 thread for M3 SHCS on the clamp side
• Φ6.0mm D hole
• AL6061-T6
• Step File

IWS-2820M open barrel crimper tool is designed to crimp non-insulated open barrel, OEM-style terminals. Perfect for servo lead connectors and some other RC crimp connectors.

The Studica U Channel is 3mm thick and has a 48mm x 48mm profile. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material: 6061-T6 Aluminum
• Thickness - 3mm
• Height - 48mm
• Width - 48mm
• Length - 192mm
• Weight - 165gms
• Hole pattern - 4
• Step File

Rubber Grommets are made for the Studica channel and plates and or any structure with a 14mm hole. Use it for protecting wire or as a bumper.

Specifications:

• Outside diameter: 18mm
• Inside Diameter : 11mm
• Hole fitting diameter: 14mm
• Thickness: 9mm
• Step File

• Step File

M3 x 12mm Socket Head Cap Screw (pack of 100), Zinc Plated.

• Step File
