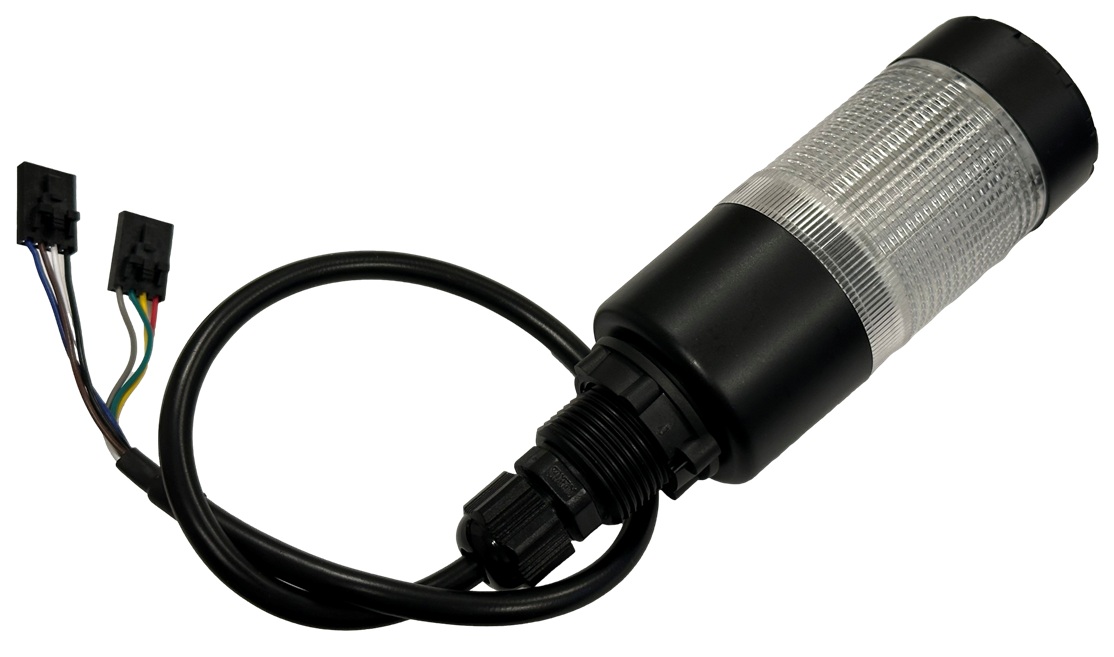

LED Light Tower

The Studica LED Light Tower is signal sound and light unit that can be used in applications such as robotics, automation systems, machinery, IoT, CNC, securirty inspection and much more. They can be used with the Studica Robotics building platform for the classroom or for competition events such as FTC, FRC, WorldSkills, as well as RoboCUP and WRO.

It can be used with the VMX controller or any other controller. It can be used as a signal or warning light system. It can be programmed to display Red (warning), Green (Safe) and Yellow and also has a buzzer.

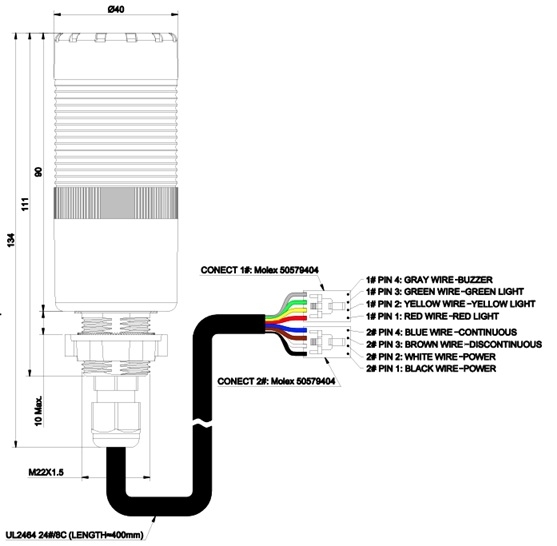

- Step File
- Onshape
- Side Mount Step file
- Bottom Mount Step file
- Includes Control board

MFR Part #: 70113

Request a Quote

In stock

Qty:

Specifications
Parts List

Specifications

LED Color: RGB
Voltage: 12V
OperatingTemperature: -25 ~+55celcius
Relative air humidity: ≤98%
Height above sea level: ≤2000m
Vibration strength: 50Hz, amplitude about 1.2mm
Continuous working time:
- 4000hrs(LED continual light type)
- 25000hrs(LED flash light type)
Sound pressure level: 80~90db (1m)
Pollution class: class 3

STEM BOT Pro Kit - Parts List

(Download to View STEM BOT Parts List as PDF)

Note: 3D CAD files for all parts are available at www.studica.com/studica-robotics-resources

Controllers included in the STEM BOT Pro Kit:

VMX Robotics Controller
- The Studica Robotics VMX Robotics Controller can be used an a Robot Control System or Vision/Motion processor, supporting Java and C++. The controller integrates the navX-IMU, Gigabit Ethernet, USB3.0 ports and built-in Wifi and Bluetooth.
- Highly-integrated, inexpensive, WiFi-enabled, multi-core Linux computing platform with lots of USB IO for expansion.
- 32-bit ARM Microcontroller incorporating sophisticated I/O and digital communications engines
- Low-cost MEMs Inertial Measurement Units (IMUs)
- Powerful software providing rich libraries and tools for developing robot control software in C++, Java
- CAN bus for high-speed, real-time communication between devices
Titan Quad Motor Controller
- The Studica Robotics Titan Quad Motor Controller is a powerful, 4-channel CAN-based motor controller with a built-in fuse-box (for DC motors up to 20A).

Specifications

LED Color: RGB
Voltage: 12V
OperatingTemperature: -25 ~+55celcius
Relative air humidity: ≤98%
Height above sea level: ≤2000m
Vibration strength: 50Hz, amplitude about 1.2mm
Continuous working time:
- 4000hrs(LED continual light type)
- 25000hrs(LED flash light type)
Sound pressure level: 80~90db (1m)
Pollution class: class 3
