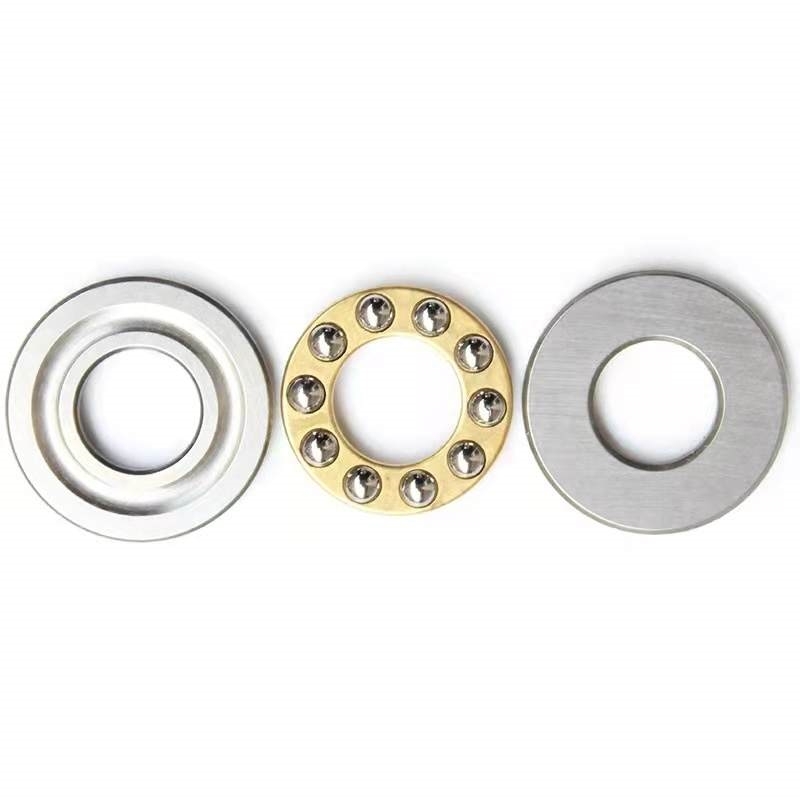

    Small Thrust Ball Bearing 6mm ID, 12mm OD (12 pack)

    The Small Thrust Ball Bearing is used for vertical and axial loads to withstand heavy loads. These ball bearings have track grooves on the upper and lower track boards to reduce friction. Use these with structure for any hole where an axial load will be applied.

    Specifications:

    • Bore Diameter - 6mm
    • Outer Diameter - 12mm
    • Outer Diameter Pilot: 11.8mm
    • Ball Diameter: 2mm
    • Height - 4.5mm
    • Material: Chrome Steel GCr15
    • Step file
    MFR Part #: 76325-12
    $19.99
    Availability: 749 in stock
