WorldSkills Autonomous Mobile Robotics LYON Upgrade to Shanghai FULL

The Studica T-Slot 3030 V-Rail is available in 11 different lengths from 48mm to 1000mm. It is strong while light weight. It can be easily cut to your own custom size. It has a 14mm through hole that will fit the Studica 6mmID x 14mmOD Flanged Bearing or Bronze Bushing. It uses the M3 T-Slot Nut Hammer Head Series 20.  It also has four M3 threaded holes on each end. Use it as structure on infinite applications.

Specifcations,

• Material:  6061-T6 Aluminum
• Length: 96mm
• Deburred, polished, and anodized
• Step File

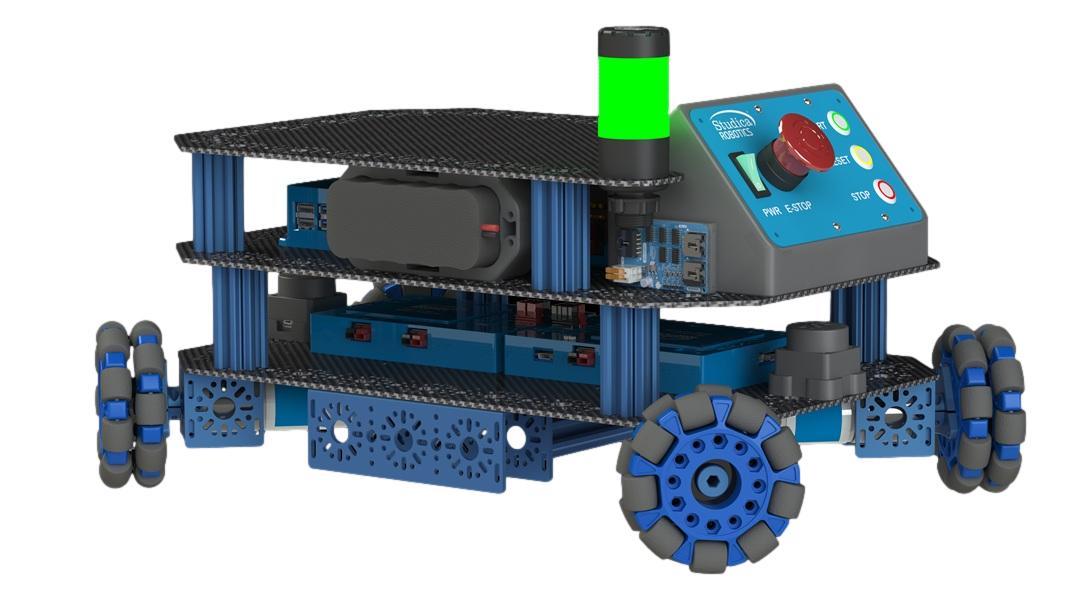

The WorldSkills Autonomous Mobile Robotics Shanghai 2026 FULL Collection, by Studica, is the authorized collection that will be used at the WorldSkills Shanghai 2026 Autonomous Mobile Robotics Competition, 22-27 September 2026. This collection includes some of the items in the previous Lyon competition collection but has many new parts.

The collection includes everything you will need to complete one of four full functioning robots that will be able to compete at Shanghai 2026. As in the previous, you will be allowed to create 3D printed parts to make any additional parts needed. Includes the VMX Robotics Controller, electronics, accessories, motors, servos, mounts, U-Channel, mounting plates, flat brackets, irregular brackets, and flat beams. You'll also find gears, sprockets, pulleys, belts, axles, slides, rack & pinion, wheels, bushings, bearings, coupling, collars, spacers, screws, nuts, and standoffs. (Over 2,100 components).

The BASE collection is enough to build just the four base robots. (CAD files attached below). The FULL collection can build the four robots and provides extra parts for the robot OMS assemblies.

• Differential Drive Robot
• Differential Drive All-Terrain Robot
• Mecanum Robot
• X-Drive Robot

There are four other collections to choose from for Shanghai 2026,

1. #70212 - Worldskills Autonomous Mobile Robotics Shanghai 2026 BASE Collection

2. #70215 - WorldSkills Autonomous Mobile Robotics Shanghai Upgrade LYON to FULL Collection

3. #70216 - Worldskills Autonomous Mobile Robotics Shanghai Upgrade LYON to BASE Collection

Download the complete BOM

Made from aluminum and anodized in blue, the Studica 42mm Hinge with Bearings connects to the Studica structure hole pattern such as the channel, plates, and beams. The holes are 3.2mm diameter to use with the M3 screws.

• Material: 6063 Aluminum
• Length: 42mm
• Width: 30.88mm
• Thickness: 3.5mm
• Hole diameter: 3.2MM
• Step file

This latest version of the VMX is the VMX2, a powerful robot controller,

• Enables Tele-op and autonomous control
• Programmable in Java, C++, Python, LabVIEW, and ROS
• Integrates the navX-IMU, a Linux based controller, Gigabit Ethernet, USB3 ports and built-in Wifi/Bluetooth.
• Can be used in a Robot Control System or Vision/Motion processor
• Supports Open CV, Tensor Flow, SLAM (Simultaneous Localization and Mapping
• Step Files

The VMX2 leverages five advanced key technology developments,

• Highly-integrated, inexpensive, WiFi-enabled, multi-core Linux computing platform with lots of USB IO for expansion
• 32-bit ARM Microcontrollers incorporating sophisticated I/O and digital communications engines
• Low-cost MEMs Inertial Measurement Units (IMUs)
• Powerful software providing rich libraries and tools for developing robot software in C++, Java
• CAN bus for high-speed, real-time communication between devices

The Studica VMX2 Technology Enables,

• Far richer development environments and tools
  • Because VMX2 is much more than a robot controller – it is a powerful, Linux-based desktop computing platform with network/monitor/keyboard/mouse support.
• Very powerful software features
  • State-of-the-art software development GUIs (e.g., VS Code) libraries and tools (drive-  train kinematics, path-planning, vision processing, autonomous navigation,   performance data acquisition/playback)
• Access to cutting-edge sensors (for use outside the competition)
  • VMX’s multitude of modern digital communications interfaces and Linux-based   operating system allow users to directly access most modern devices (e.g., Intel   RealSense tracking and depth cameras and LIDAR

The Studica T-Mini Lidar is a 360-degree 2D LiDAR sensor. Utilizing Time-of-Flight (ToF) technology, it integrates advanced optical, electronic, and algorithmic designs to deliver high-precision laser distance measurements. During operation, its mechanical structure rotates 360 degrees, capturing continuous angle data. This enables comprehensive 360-degree scanning and generates point cloud data representing the scanned environment.

Includes,

• T-Mini Lidar
• Base for attaching T-Mini to Studica Robotics Structure
• USB Adapter Board
• USB Type A to Type C Video Cable
• JST-PH 5 pin to JST-GH 4 pin Cable

STEP File

Includes,

• 5A x 2
• 10A x 2
• 15A x 5
• 20A x 5
• 30A x 2
