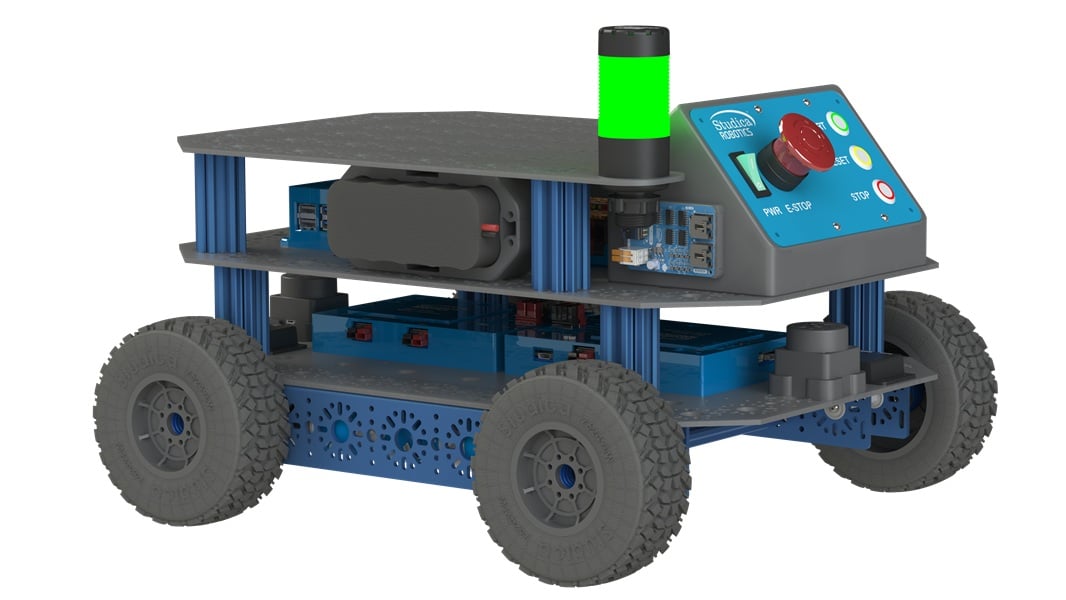

WorldSkills Autonomous Mobile Robotics Shanghai 2026 FULL Collection

The WorldSkills Autonomous Mobile Robotics Shanghai 2026 FULL Collection, by Studica, is the authorized collection that will be used at the WorldSkills Shanghai 2026 Autonomous Mobile Robotics Competition, 22-27 September 2026. This collection includes some of the items in the previous Lyon competition collection but has many new parts.

The collection includes everything you will need to complete one of four full functioning robots that will be able to compete at Shanghai 2026. As in the previous, you will be allowed to create 3D printed parts to make any additional parts needed. Includes the VMX Robotics Controller, electronics, accessories, motors, servos, mounts, U-Channel, mounting plates, flat brackets, irregular brackets, and flat beams. You'll also find gears, sprockets, pulleys, belts, axles, slides, rack & pinion, wheels, bushings, bearings, coupling, collars, spacers, screws, nuts, and standoffs. (Over 2,100 components).

The BASE collection is enough to build just the four base robots. (CAD files attached below). The FULL collection can build the four robots and provides extra parts for the robot OMS assemblies.

There are four other collections to choose from for Shanghai 2026,

1. #70212 - Worldskills Autonomous Mobile Robotics Shanghai 2026 BASE Collection

2. #70215 - WorldSkills Autonomous Mobile Robotics Shanghai Upgrade LYON to FULL Collection

3. #70216 - Worldskills Autonomous Mobile Robotics Shanghai Upgrade LYON to BASE Collection

Download the complete BOM

MFR Part #: 70211

Request a Quote

Qty:

Customers who bought this item also bought

6mm Low Profile Hex Shaft Clamping Hub-V2

#76296H

$9.99

The Studica Robotics 6mm Hex Shaft Low Profile Clamping Hub V2 is an ideal fit for our motors.

Step File

Clamping 6mm Hex Shaft Hub-V2

#76295H

$7.99

Precision Hub for Hex-Shaft Couplings

The Studica Robotics 6 mm Low Profile Hex Shaft Clamping Hub V2 is engineered to deliver a secure and compact coupling between your motor or drive shaft and wheels, sprockets, or other mechanical components. With its 6 mm hex-shaft ID and low profile form, it's ideal for tight-space and high-precision builds. Made of aluminum, the Studica Robotics Clamping 6mm Hex Shaft Hub-V2 is used with our wheels.

Step File

64mm T-Slot 3030 V-Rail

#76129

Request a Quote

The Studica T-Slot 3030 V-Rail is available in 11 different lengths from 48mm to 1000mm. It is strong while light weight. It can be easily cut to your own custom size. It has a 14mm through hole that will fit the Studica 6mmID x 14mmOD Flanged Bearing or Bronze Bushing. It uses the M3 T-Slot Nut Hammer Head Series 20. It also has four M3 threaded holes on each end. Use it as structure on infinite applications.

Specifcations,

Material: 6061-T6 Aluminum
Length: 96mm
Deburred, polished, and anodized
Step File

6mm Hex Shaft Collar Clamp

#76320H

$4.99

(In stock)

The Studica Robotics 6mm Hex shaft collar clamp cay be used with the 6mm D-Shape Shaft to secure wheels in their position.

Clover Motor Mount

#76137

$7.99

(In stock)

6mm Hex Shaft Face Bearing Block

#76299H

$10.89

(In stock)

The Studica Robotics 6mm Hex Shaft Face Bearing Block can be mounted on any channel and bracket allowing for a 6mm ID through hole for 6mm shafts (axles). The block has a permanently installed Standard Sealed Bearing and has 8 x M3 tapped through holes for easy mounting.

Cypher MAX Through Bore Encoder

#75051

$47.99

(In stock)

Elevate your robotic precision to new heights with the Studica Cypher Max – the ultimate fusion of absolute and incremental encoder technology in one user-friendly package. Whether you're orchestrating intricate arm movements or implementing a sophisticated swerve mechanism, the Cypher Max provides the rotational angle accuracy you crave, boasting an impressive ± 1.2° precision with its PWM absolute output.

But the Cypher Max doesn't stop there. When it comes to odometry or RPM calculations for a shaft, the ABI incremental output, featuring a count of 2048 per rotation, ensures unparalleled control and near-perfect accuracy. The hub design of the Cypher Max adds another layer of versatility, accommodating a base 3/8" Hex shaft with inserts for other sizes, allowing you to measure precisely where you need it. Upgrade your robotic arsenal with the Cypher Max – where precision meets perfection.

Included Cables:

Absolute Cable (1.27mm to 2.54mm 3-pin Female Dupont)
Quadrature Cable (1.27mm to 2.54mm single-pin Female Dupont)
FTC Cable (1.27mm to 4-pin JST PH)
Programming Cable (1.27mm to 2.54mm single pin Female Dupont)

Included Inserts:

3/8" Hex-Shaft (Base)
7mm Hex-Shaft
5mm Hex-Shaft
6mm D-Shaft

Step files

EV SSL

Qty	Description	Part #	Image
2	Wago Compact Splicing Connecror, 12AWG	221-415
50	PowerPole - Red	1327
50	PowerPole - Black	1327G6
50	PowerPole Crimp 14 - 10AWG	201G1H
25	PowerPole Crimp 16 - 12 AWG	269G1
25	PowerPole Crimp 20 - 16 AWG	269G2
10	Retention Clip	110G68
1	Ferrule Kit (670pcs) 70pcs - E6012 100pcs - E4012 100pcs - E0508 100pcs - E7506 100pcs - E1508 100pcs - E2508 100pcs - E1008	70137-FK
25	Cable Tie Base - Black	3240707
