navX3-CAN Robotics Navigation Sensor

The navX2-Micro is the greatest sensor for orientation in competitive robots. navX2-Micro is a second-generation 9-axis inertial/magnetic sensor and motion processor. Designed for plug-n-play installation onto robots such as those used in the WorldSkills Robotics, FIRST Technology Challenge (FTC) and the FIRST Robotics Challenge (FRC), navX2-Micro helps build better robots by adding sophisticated navigation capabilities. Significant improvements over the classic navX-Micro allow for more accuracy, decreased yaw drift, and faster boot time. navX-2 Micro includes software algorithms for enhanced sensor calibration as well as KalmanFilter-based data fusion combining gyro, accelerometer, and magnetometer data into a 9-axis heading and high-quality magnetometer calibration including magnetic disturbance detection.

In addition to being an Inertial Measurement Unit, navX2-Micro capabilities are referred to within the aerospace industry as an “Attitude/Heading Reference System” (AHRS). Studica brings this high-tech AHRS capability to FIRST teams – to use, learn, and explore. navX2-Micro is a key component of Studica's ongoing efforts to make state-of-the-art navigation technologies used in drones and autonomous vehicles (e.g., the Google Car) available to robotics students and enthusiasts as low-cost, open-source products.

Improvements over navX "Classic":
navX2-Micro features a new set of IMU & Magnetometer sensors with superior sensor specifications to those on the MPU-9250 sensor. This board has a faster 180Mhz microcontroller and an optimized startup time at 5 seconds versus 15 seconds. In addition, it has a completely new Kalman Filter-based Sensor Fusion algorithm running internally at a blazing fast 416Hz.

RoboRIO Installation
It's recommended to connect to the RoboRIO using a USB Mini-B type (Male) to USB A type (Male) connector, navX2-Micro can receive both power and also communicate with the RoboRIO. This preferred installation method allows the navX2-Micro circuit board to be placed up to 6 meters away from the RoboRIO.

IMPORTANT NOTE:  To avoid having the navX2-Micro reset due to a RoboRIO brownout, connecting the navX2-Micro to the RoboRIO via USB is highly recommended.

The Cobra Line Follower Array provides 4 X QRE1113 IR reflectance sensor mounted on a 9mm pitch Each sensor is comprised of two parts - an IR emitting LED and an IR sensitive phototransistor. When you apply power to the VCC and GND pins the IR LED inside the sensor will illuminate.

The Studica Line Sensor Board consists of 4 IR LED/phototransistor pairs, making it a great detector for a line-following robot.  The Line Sensor Board allows the robot to tell objects or surfaces apart based on how dark or light they are. It shines a beam of infrared light out onto the object, and measures how much light is reflected back.

Each sensor provides a separate analog voltage output. The sensor board is an infrared emitter/receiver that is able to differentiate between a dark surface (with low IR reflectivity – 3.3V to 5V) and a light surface (with high IR reflectivity – 0V to 0.5V). However, this range can vary depended on the installed height of the sensor board.

The optimum height distance is 3-5 mm; however, the reflectivity values will change depending on distance. A daylight filter is built into the sensor.

• 5VDC operating voltage (recommended)
• 70mA supply current
• Optimal sensing distance: 0.125" (3mm)
• Step File

• Stable, accurate distance measurement
• High precision, blind spots (3cm) super close
• A full set of ranging process
• Step File

This is a snap-action micro switch with hinged roller lever and terminals for easy wire connection.

Features:

• High precision of action seat
• High shock resistance
• Shock resistance Max.l000/s2
• Max temperature: T105.C
• Catheter design for easy wiring
• 3 Pin
• Max. Current: 16A
• Max. Voltage: 250V
• OP:14.3~15.1mm
• Protection Level: IP40
• Switch Function: ON - (OFF), OFF - (ON)
• Contact form: SPDT
• High impact resisstance
• Max Ambient temperature:105centigrade
• Mechanical life:10,000,000 on -off
• Electrical life: over 100,000 on-off
• Contact material: AgNi ,AgCdO
• Certificate: CCC,CE,UL,ROHS

Designed as a more affordable replacement for the RealSense D435, the Studica 3D Depth Camera provides an accurate high-definition depth-sensing camera for mobile robotics and consumer electronic projects.

Elevate your robotic precision to new heights with the Studica Cypher Max – the ultimate fusion of absolute and incremental encoder technology in one user-friendly package. Whether you're orchestrating intricate arm movements or implementing a sophisticated swerve mechanism, the Cypher Max provides the rotational angle accuracy you crave, boasting an impressive ± 1.2° precision with its PWM absolute output.

But the Cypher Max doesn't stop there. When it comes to odometry or RPM calculations for a shaft, the ABI incremental output, featuring a count of 2048 per rotation, ensures unparalleled control and near-perfect accuracy. The hub design of the Cypher Max adds another layer of versatility, accommodating a base 3/8" Hex shaft with inserts for other sizes, allowing you to measure precisely where you need it. Upgrade your robotic arsenal with the Cypher Max – where precision meets perfection.

Included Cables:

• Absolute Cable (1.27mm to 2.54mm 3-pin Female Dupont)
• Quadrature Cable (1.27mm to 2.54mm single-pin Female Dupont)
• FTC Cable (1.27mm to 4-pin JST PH)
• Programming Cable (1.27mm to 2.54mm single pin Female Dupont)

Included Inserts for:

• 3/8" Hex-Shaft (Base)
• 7mm Hex-Shaft
• 5mm Hex-Shaft
• 6mm D-Shaft
• 6mm Hex-Shaft

Step files

The Studica T-Mini Lidar is a 360-degree 2D LiDAR sensor. Utilizing Time-of-Flight (ToF) technology, it integrates advanced optical, electronic, and algorithmic designs to deliver high-precision laser distance measurements. During operation, its mechanical structure rotates 360 degrees, capturing continuous angle data. This enables comprehensive 360-degree scanning and generates point cloud data representing the scanned environment.

Includes,

• T-Mini Lidar
• Base for attaching T-Mini to Studica Robotics Structure
• USB Adapter Board
• USB Type A to Type C Video Cable
• JST-PH 5 pin to JST-GH 4 pin Cable

STEP File

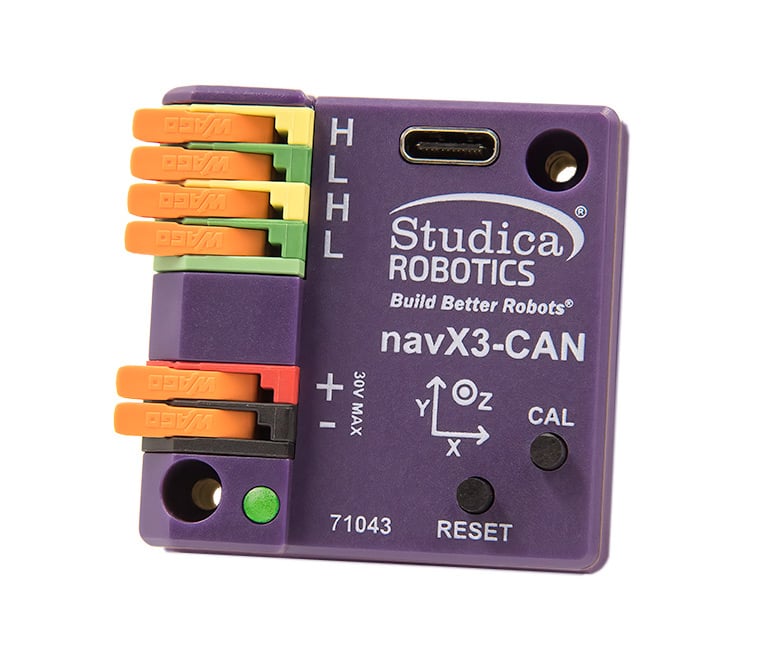

NavX3-CAN, the next generation of the competition-proven NavX IMU. Completely re-engineered from the ground up to create the best possible IMU for competition robotics.

• Step File
• FRC | Studica Robotics Docs

Unleash the next level of line-following prowess with the Cobra Line Follower V3, the third generation that takes excellence to new heights. Building on the success of its predecessors, the Cobra V3 integrates cutting-edge features to deliver an even more superior performance.

Equipped with an ADC Module, the Cobra V3 seamlessly plugs into any i2c port, providing accurate sensor readings for unparalleled control. For those who prefer raw data, a dedicated output port is now available. Redesigned to meet the escalating demands of robotics enthusiasts, the Cobra V3 boasts an extended sensor range of 0.5mm to 20mm – the Goldilocks zone for precision tracking. Upgrade to the Cobra Line Follower V3 and experience a new era of robotic sensing, where innovation meets reliability for the ultimate in line-following technology.
