Lyon 2024 Upgrade Pack

The Lyon Fruit and Vegetable Kit can be used to train for the Lyon 2024 Competition where on days 1 and 2 various autonomous mobile robot skills will be assessed. There are 10 fruits and vegetables that are at a one-to-one scale to the real produce. Note these may or may not be used in the competition.

The package includes,

• 1 Orange
• 1 Peach
• 1 Green Apple
• 1 Pomegranate
• 1 Garlic head
• 1 Banana
• 1 Kiwi
• 1 Mangosteen
• 1 Lime (Lemon)
• 1 Red Pepper

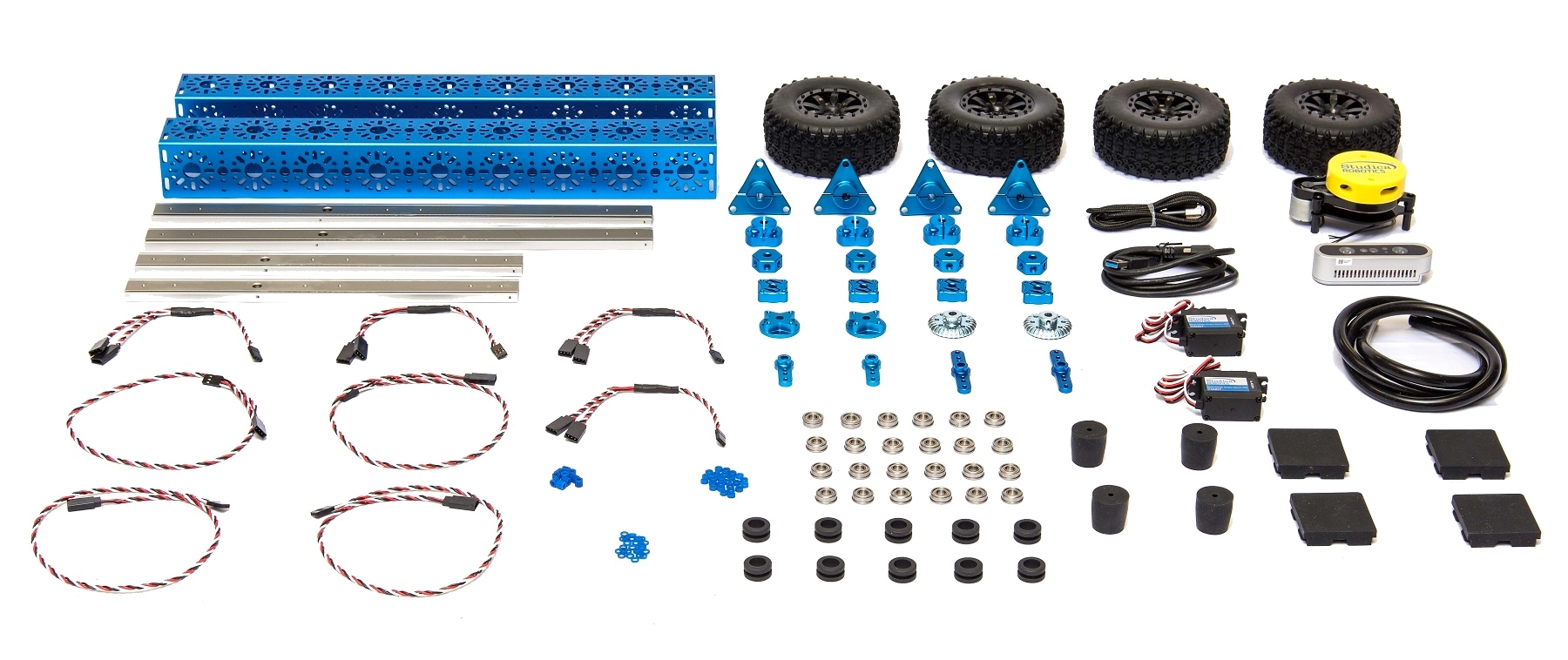

The WorldSkills Lyon 2024 Autonomous Mobile Robotics Collection, by Studica, is the authorized collection for the WorldSkills Autonomous Mobile Robotics Competition in Lyon, France, 10-15 September 2024. This collection includes most of the items in the previous competition collection and has 28 new parts. The biggest change is the new 3D Depth Camera, the 360 Degree LiDAR which will bring the competition to the next level for Autonomous Mobile Robotics (AMR).

The collection includes everything you will need to complete a full functioning robot that will be able to compete at Lyon 2024. As in the previous, you will be allowed to create 3D printed parts to make any additional parts needed. Includes the VMX Robotics Controller, which can be programmed in Java, C++, Python, ROS, and LabVIEW. This collection also includes electronics, accessories, motors, servos, mounts, U-Channel, mounting plates, flat brackets, irregular brackets, and flat beams. You'll also find gears, sprockets, pulleys, belts, axles, slides, rack & pinion, wheels, bushings, bearings, coupling, collars, spacers, screws, nuts, and standoffs. (Over 1600 components).

If you already have the 2022 Shanghai/Bordeaux Collection and wish to add only the new items, you can purchase the Lyon 2024 Upgrade Kit

Download the complete BOM and getting starting guide

Download the Lyon Apple Tree CAD file

The Lyon Challenge Elements are used to train for the WorldSkills Lyon 2024 Mobile Robotics Competition.

The Multi-Mode Smart Servo 200 rotates at 200RPM. This angular programmable Servo can fill a variety of roles on your robot or project. In standard mode, it operates on a +/- 150-degree range. Using the Studica Smart Robot Servo Programmer (sold separately) the Multi-mode Smart Servo can be configured to run in continuous, standard, and custom angular mode. In continuous rotation mode, the servo will have proportional speed control based on the PWM signal that you send with your servo controller.

• Step File

The Maverick 12V DC Gear Motor 61:1 w/Encoder was designed for strength and endurance.


Specifications:

• Voltage:                      12V DC
• Amperage                   11A(full stall). Nominal operating current is 2.2A, at 12V it's 26.4W
• Wattage                      132W
• Length:                        134mm
• Gear Ratios:                 61:1
• Shaft Diameter:            6mm D-Shaft
• Diameter:                     37mm
• Stall Torque:                 50.5 kg-cm (702 oz-in)
• RPM:                             100
• Encoder:                       Hall effect/Quadrature, 6CPR, 1,464 pulse per revolution
• Weight:                          326 grams
• Power cable:                 PP45, 45cm, 14AWG
• Encoder Cable:             45cm, 22AWG 4-pin
• Step File

nominal so operating current is 2.2A so at 12V this would 26.4W

The Studica Multi-Mode Smart Servo features all-steel gears and large amounts of torque. This angular programmable Servo can fill a variety of roles on your robot or project. In standard mode, it operates on a +/- 150-degree range. Using the Studica Smart Robot Servo Programmer (sold separately) the Multi-mode Smart Servo can be configured to run in continuous, standard, and custom angular mode. In continuous rotation mode, the servo will have proportional speed control based on the PWM signal that you send with your servo controller.


• Step File

The Studica 360 Degree LiDAR is a 2D LiDAR that rotates 360 degrees to achieve high accuracy, stable performance, high-frequency and high-precision distance measurement. It's ideal for robot navigation and obstacle avoidance.

Lidar Step File
Lidar Control Unit Step File
