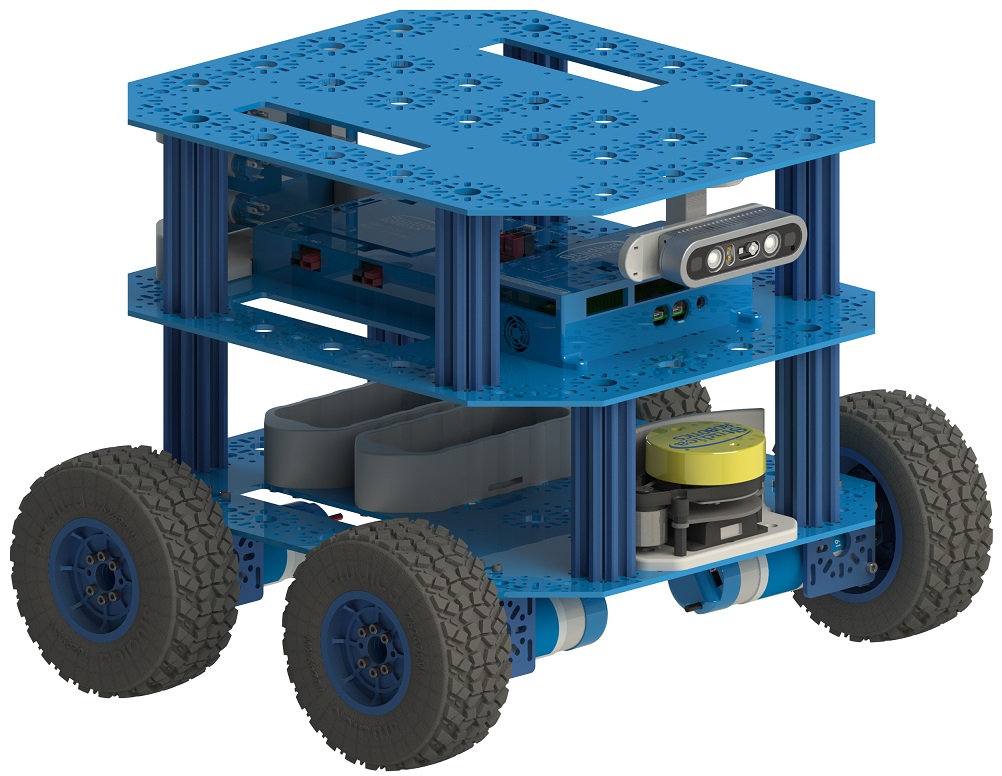

    The Stack Robot

    Introducing the revolutionary Stack Robot, a cutting-edge robotics platform designed to ignite your passion for learning robotics like never before! Prepare to be amazed as you delve into a world of endless possibilities and embark on a thrilling journey of technological exploration.


    Equipped with a mind-boggling array of advanced sensors, including the state-of-the-art 2D LiDAR, Encoders, IMU, and the awe-inspiring depth features from the revolutionary Studica Depth Camera, the Stack Robot brings the future of robotics right to your fingertips.


    But that's not all—the Stack Robot is not just a mere tool; it's a gateway to a realm of knowledge and innovation. With its seamless integration of educational curriculum, you can now dive deep into exciting concepts such as SLAM, Teleoperation, Mapping, Localization, and the pinnacle of achievement, Autonomous Mobile Robotics. Unlock the true potential of robotics education and propel yourself into a realm of cutting-edge technology.


    What sets the Stack Robot apart is its unparalleled adaptability. Powered by the Studica Robotics building platform, this remarkable creation offers limitless expansion opportunities. Picture yourself constructing versatile robotic arms that can tackle intricate tasks with precision, designing elevator systems that effortlessly navigate complex terrains, or even adding a high-powered flywheel capable of launching objects to incredible distances. The only limit is your imagination.


    Get ready to unleash your creativity, challenge the boundaries of possibility, and embark on an extraordinary adventure with the Stack Robot. It's time to take your robotics journey to new heights and redefine what is achievable in the fascinating world of robotics. The future is now, and it starts with the Stack Robot.


     BOM Download               |                Building Instructions              |                 Electrical Schematics

    MFR Part #: 70225
    $1749.00
    Availability: In stock

    Includes the following,

    • 3    Base Plate (288mm x 336mm x 3mm)    74001
    • 2    48mm U-Channel (2 pack)    76018-2
    • 4    Motor Mount Plate    76140
    • 8    96mm T-Slot Extrusion    76127
    • 4    Maverick 12V DC Gear Motor w/Encoder    750001
    • 1    M3 Nyloc Nut (100 pack)    76205-100
    • 1    M3 x 8mm Socket Head Cap Screw (100 pack)      76200-10
    • 1    M3 x 10mm Socket Head Cap Screw (100 pack)    76201-100
    • 1    M3 x 12mm Socket Head Cap Screw (100 pack)    76202-100
    • 1    M3 x 25mm Socket Head Cap Screw (50 pack)      76214-50
    • 1    M3 x 30mm Socket Head Cap Screw  (50 pack)     76206-50
    • 2    3mm Pattern Spacer (10 pack)    76294-10
    • 4    Clamping Shaft Hub - v2    76280
    • 1    125mm All-Terrain Wheel Set    76249
    • 2    12V 3000 mAh NiMH Battery Pack -PP45    70018
    • 2    NiMH Battery Pack Charger -PP45    70019
    • 1    Titan Quad Motor Controller    70152
    • 1    Titan Cable Pack    70162
    • 1    VMX Robotics Controller    70176
    • 1    VMX Cable Pack    70160
    • 1    Remote Controller - Bluetooth   70112
    • 1    Power Control Panel    70170
    • 1    Power Switch added to Control Panel    70183
    • 1    360 Degree LiDAR    70500
    • 1    3D Depth Camera    71044
    • 1    2.5mm Hex Ball End Screwdriver   70142
    • 1    5.5mm Combination Wrench
    • 1    Wire set

    Includes the following,

    • 3    Base Plate (288mm x 336mm x 3mm)    74001
    • 2    48mm U-Channel (2 pack)    76018-2
    • 4    Motor Mount Plate    76140
    • 8    96mm T-Slot Extrusion    76127
    • 4    Maverick 12V DC Gear Motor w/Encoder    750001
    • 1    M3 Nyloc Nut (100 pack)    76205-100
    • 1    M3 x 8mm Socket Head Cap Screw (100 pack)      76200-10
    • 1    M3 x 10mm Socket Head Cap Screw (100 pack)    76201-100
    • 1    M3 x 12mm Socket Head Cap Screw (100 pack)    76202-100
    • 1    M3 x 25mm Socket Head Cap Screw (50 pack)      76214-50
    • 1    M3 x 30mm Socket Head Cap Screw  (50 pack)     76206-50
    • 2    3mm Pattern Spacer (10 pack)    76294-10
    • 4    Clamping Shaft Hub - v2    76280
    • 1    125mm All-Terrain Wheel Set    76249
    • 2    12V 3000 mAh NiMH Battery Pack -PP45    70018
    • 2    NiMH Battery Pack Charger -PP45    70019
    • 1    Titan Quad Motor Controller    70152
    • 1    Titan Cable Pack    70162
    • 1    VMX Robotics Controller    70176
    • 1    VMX Cable Pack    70160
    • 1    Remote Controller - Bluetooth   70112
    • 1    Power Control Panel    70170
    • 1    Power Switch added to Control Panel    70183
    • 1    360 Degree LiDAR    70500
    • 1    3D Depth Camera    71044
    • 1    2.5mm Hex Ball End Screwdriver   70142
    • 1    5.5mm Combination Wrench
    • 1    Wire set
