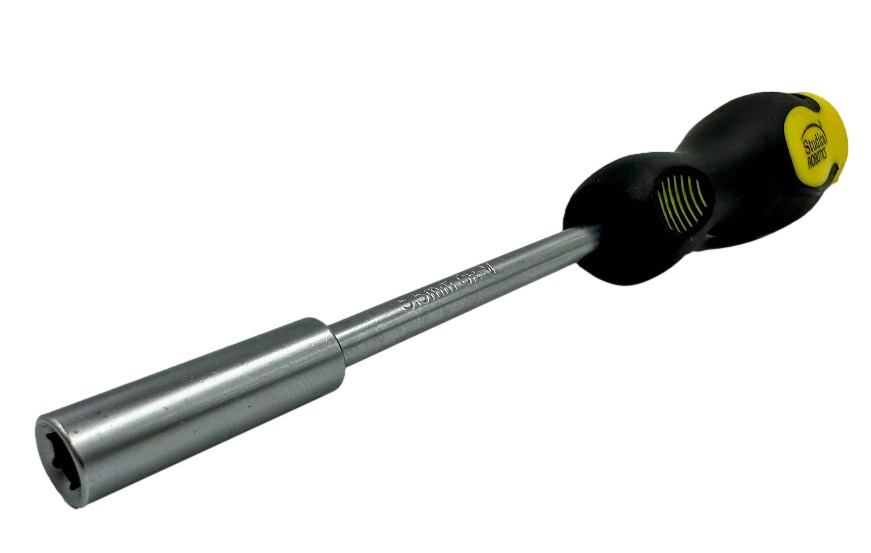

5.5mm Nut Driver

This 5.5mm Combination Wrench ships with most of our kits works with all the M3 nuts available on our store.

• Used with 5.5mm Nuts
• 50BV30 ratchet head
• heat treatment
• surface balck finished
• body #45 carbon steel material
• mirror polishing
• product engrave size and laser logo
• length 110mm

The WSC2022SE Gurney includes the following items,

• Gurney Build Instructions -  Download
• Interactive Viewer - Open
• Gurney Step file - Download

The Studica 12V 3,000 mAh NiMH (nickel metal hydride) Battery Pack, PP45 comes with a w/20 amp fuse. It is a 10-cell, 12-volt rechargeable battery pac k that brings long-lasting power to motors and electronics that are used in the WorldSkills Mobile Robotics Collection. The Studica NiMH Battery Pack Charger, PP45, is required to charge the battery.

Specifications,

• Dimensions: 5 x 2.1 x 2.1 inches (115 mm x 45 mm x 50 mm)
• Weight: 1.32lbs (579 g)
• Built-in 20-amp replaceable fuse for safety
• 10-cell pack provides 3,000-mAh capacity for longer life
• PP45 connector for easy and safe connection to controller
• Step File

The Studica Multi-Mode Smart Servo features all-steel gears and large amounts of torque. This angular programmable Servo can fill a variety of roles on your robot or project. In standard mode, it operates on a +/- 150-degree range. Using the Studica Smart Robot Servo Programmer (sold separately) the Multi-mode Smart Servo can be configured to run in continuous, standard, and custom angular mode. In continuous rotation mode, the servo will have proportional speed control based on the PWM signal that you send with your servo controller.


Specifications:

• Type:                             Metal Brush Motor
• Horn Gear Spline:       25T (5.9mm)
• Size:                               40mm x 20.1mm x 38.3mm
• Weight:                          65g
• Maximum Speed:        62RPM at 6V
• Stall Torque:                 20kg.cm at 6V
• Voltage:                         6-7 4V
• Cable:                             22AWG, 75cm
• Step File

The Multi-Mode Smart Servo 200 rotates at 200RPM. This angular programmable Servo can fill a variety of roles on your robot or project. In standard mode, it operates on a +/- 150-degree range. Using the Studica Smart Robot Servo Programmer (sold separately) the Multi-mode Smart Servo can be configured to run in continuous, standard, and custom angular mode. In continuous rotation mode, the servo will have proportional speed control based on the PWM signal that you send with your servo controller.

• Step File

• Φ29.0mm*16.0mm thick
• 6*M3 thread tapping through (including 2*M3 thread for M3 SHCS)
• Φ6.0mm D hole
• AL6061-T6
• Step File
