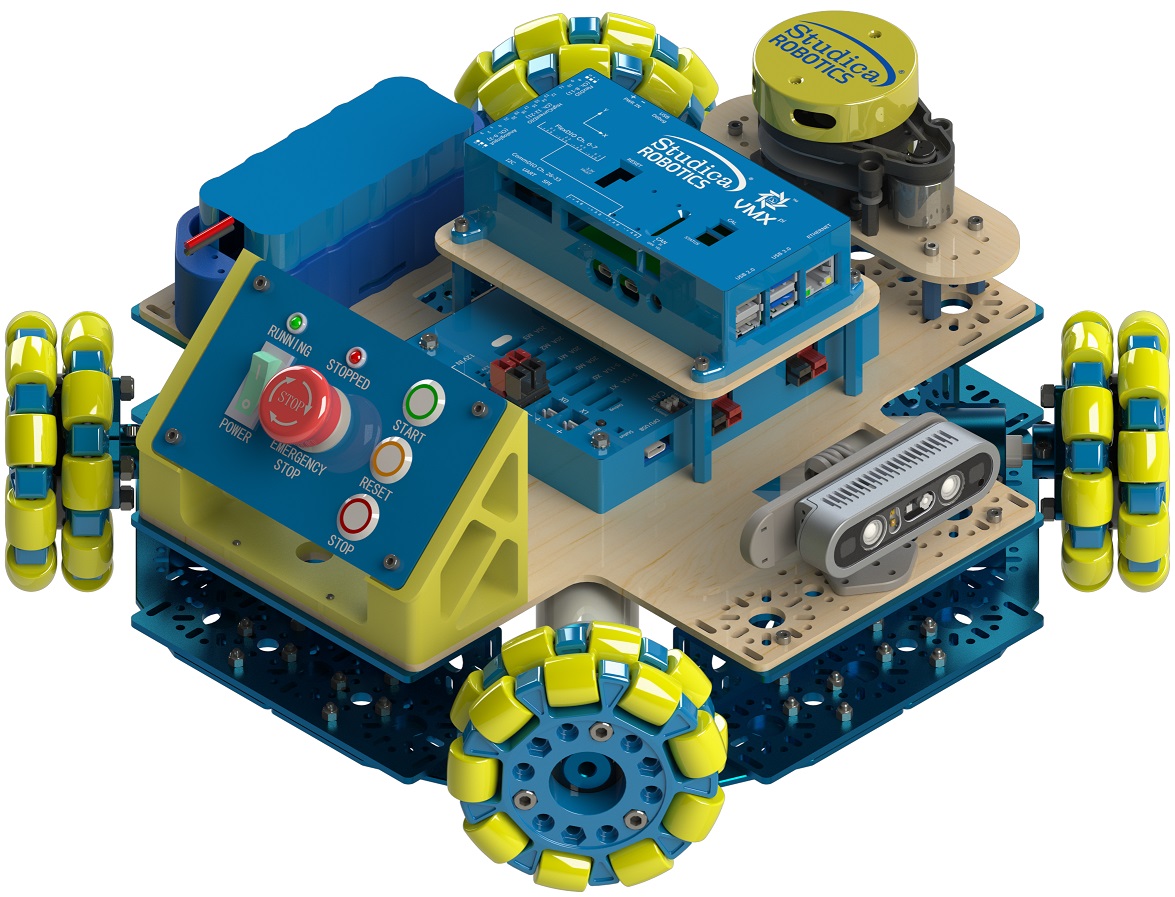

X-Drive Bot Kit

Introducing the revolutionary All-Terrain Stack Robot, a cutting-edge robotics platform designed to ignite your passion for learning robotics like never before!

This versatile open platform kit is ideal for classrooms from high school through university and research environments. It’s also the perfect solution for competitions such as RoboCup Search and Rescue and RoboCup@Work.

Equipped with a mind-boggling array of advanced sensors, including the state-of-the-art 2D LiDAR, Encoders, IMU, and the awe-inspiring depth features from the revolutionary Studica Depth Camera, the Stack Robot brings the future of robotics right to your fingertips.

But that's not all—the Stack Robot is not just a mere tool; it's a gateway to a realm of knowledge and innovation. With its seamless integration of educational curriculum, you can now dive deep into exciting concepts such as SLAM, Teleoperation, Mapping, Localization, and the pinnacle of achievement, Autonomous Mobile Robotics. Unlock the true potential of robotics education and propel yourself into a realm of cutting-edge technology.

What sets the Stack Robot apart is its unparalleled adaptability. Powered by the Studica Robotics building platform, this remarkable creation offers limitless expansion opportunities. Picture yourself constructing versatile robotic arms that can tackle intricate tasks with precision, designing elevator systems that effortlessly navigate complex terrains, or even adding a high-powered flywheel capable of launching objects to incredible distances. The only limit is your imagination.

Get ready to unleash your creativity, challenge the boundaries of possibility, and embark on an extraordinary adventure with the Stack Robot. It's time to take your robotics journey to new heights and redefine what is achievable in the fascinating world of robotics. The future is now, and it starts with the Stack Robot.

* For Hex Shaft, please comment 70225H

 BOM Download               |                Building Instructions              |                 Electrical Schematics

The WSC2022SE Gurney includes the following items,

• Gurney Build Instructions -  Download
• Interactive Viewer - Open
• Gurney Step file - Download

The Studica Robotics Classroom Kit includes many parts for building a robot for competitions.  This kit is ideal for schools wanting to replicate a FTC kit, but not yet involved with FTC.

Download the Kit List here.

* For Hex Shaft, please comment 70405H

Used for WorldSkills, the Studica 12V 3,000mAh NiMH (nickel metal hydride) Battery Pack, PP45 in comes with a w/20 amp fuse. It is a 10-cell, 12-volt rechargeable battery pack.

The Studica NiMH Battery Pack Charger, PP45, is required to charge the battery.

Specifications,

• Dimensions: 5 x 2.1 x 2.1 inches (115 mm x 45 mm x 50 mm)
• Weight: 1.32lbs (579 g)
• 12V, internal 8-9mΩ per cell
• Built-in 20-amp replaceable fuse for safety
• 10-cell pack provides 1,800-mAh capacity
• PP45 connector for easy and safe connection to controller
• Step File

The Studica Multi-Mode Smart Servo features all-steel gears and large amounts of torque. This angular programmable Servo can fill a variety of roles on your robot or project. In standard mode, it operates on a +/- 150-degree range. Using the Studica Smart Robot Servo Programmer (sold separately) the Multi-mode Smart Servo can be configured to run in continuous, standard, and custom angular mode. In continuous rotation mode, the servo will have proportional speed control based on the PWM signal that you send with your servo controller.


• Step File

The Lyon Fruit and Vegetable Kit can be used to train for the Lyon 2024 Competition where on days 1 and 2 various autonomous mobile robot skills will be assessed. There are 10 fruits and vegetables that are at a one-to-one scale to the real produce. Note these may or may not be used in the competition.

The package includes,

• 1 Orange
• 1 Peach
• 1 Green Apple
• 1 Pomegranate
• 1 Garlic head
• 1 Banana
• 1 Kiwi
• 1 Mangosteen
• 1 Lime (Lemon)
• 1 Red Pepper


The Multi-Mode Smart Servo 200 rotates at 200RPM. This angular programmable Servo can fill a variety of roles on your robot or project. In standard mode, it operates on a +/- 150-degree range. Using the Studica Smart Robot Servo Programmer (sold separately) the Multi-mode Smart Servo can be configured to run in continuous, standard, and custom angular mode. In continuous rotation mode, the servo will have proportional speed control based on the PWM signal that you send with your servo controller.

• Step File
