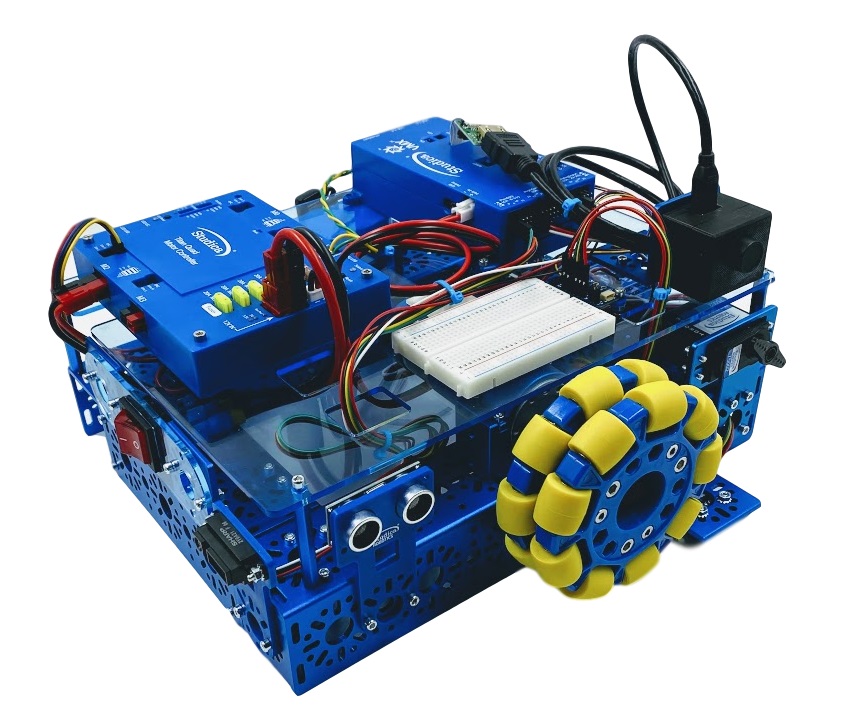

Mobile Robotics VMX/Titan Workshop Kit (D Shaft)

3 review(s) | Add your review

The Mobile Robotics VMX/Titan Workshop Kit is used in the classroom for teaching, testing and doing research in Autonomous Mobile Robotics. It also includes each of the essential components referenced in the WorldSkills Mobile Robotics training material.

* For Hex Shaft, please comment 70203H

Parts List

MFR Part #: 70203

$1499.00

In stock

Qty:

Specifications
Reviews

1 - WorldSkills Autonomous Mobile Robotics Beginner Training

This is a general introduction on building an autonomous mobile robot using the Mobile Robotics VMX/Titan Workshop Kit. Use this first before moving to other training programs.

- - Day 1 - Getting started - 3:00:00
    - Getting started
      - Competition Overview and Requirements
      - Introduction to the World Skills Collection
      - Hardware Construction Tips and Tricks
  - Day 2 - Building a basic robot - 2:57:00
    1. Mechanical Build
      - Base Structure (Drive System)
      - Drive Type and Working Principles
      - 3 wheeled omni drive build
      - Sample Training Platform
    2. Electrical build
      - Sample wiring of the Electrical System
  - Day 3 - Programming in Java - 2:50:00
    - Introduction to Programming
    - Starting Java
    - Example Projects for WorldsSkills-https://github.com/studica/WorldSkills-Example-Projects
    - Configuring and Testing the SR Camera
  - Day 4 - Core Programming - 2:59:00
    - Creating a Sample Project (Java)
    - Basic Digital I/O
    - Cobra Line Sensor Board
    - Sharp I/R Sensor
    - Ultrasonic Distance Sensor
    - Basic Control of a DC Motor
    - Basic Control of a Servo Motor
    - Adding the Shuffleboard user Interface to see data
  - Day 5 - Design of a Basic Robot Control System - 2:33:00
    - Introduction to Programming the IMU (NavX)
    - Gamepad Setup to Control and test robot functionality.
    - Introduction to Vision with the SR Camera
    - Introduction to the Quick Driver Console
    - Driving the Base Robo
    - Review of Configuring the Titan QUAD
