    Worldskills Lyon Expansion Set

    Be the first to review this product

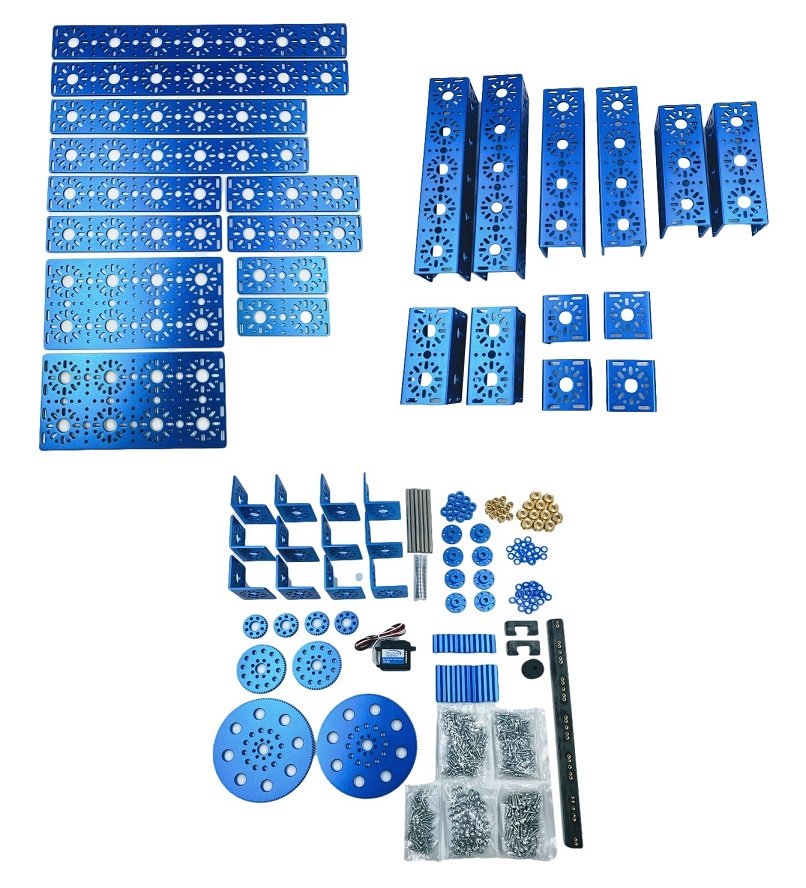

    Includes,

    • 2 - 336mm U-Channel  - 76012
    • 1 - 288mm U-Channel (2 pack)  - 76013-2
    • 2 - 144mm U-Channel (2 pack) - 76016-2
    • 2 - 96mm U-Channel (2 pack)  - 76017-2
    • 2 - 48mm U-Channel (2 pack)  - 76018-2
    • 2 - 336mm x 40mm Flat Bracket  - 76060
    • 1 - 288mm x 40mm Flat Bracket (2 pack)  - 76061-2
    • 1- 192mm x 40mm Flat Bracket  - 76063-2
    • 1 - 144mm x 40mm Flat Bracket  - 76064-2
    • 1 - 96mm x 40mm Flat Bracket  - 76065-2
    • 1 - 192mm x 96mm Flat Bracket (2 pack)  - 76066-2
    • 3 - L Bracket (2 pack)  - 76087-2
    • 3 - Inside L Bracket (2 pack)  - 76089-2
    • 1 - 6mm x 96mm D-Shaft (6 pack)  - 76161-6
    • 2 - Collar 6mm ID D-Shaft, 12mm OD (6 pack)  - 76304-6
    • 1 - Bushing Bronze 6mm ID x 8mm OD (12 Pack) - 76300-12
    • 1 - Bushing Bronze 6mm ID x 14mm OD (12 Pack) - 76301-12
    • 1 - Flange Bearing  6mm ID, 14mm OD, 15mm Flange (12 Pack) - 76302
    • 1 - Shaft Spacer Plastic 6mm ID x 10mm OD x 1mm L (24 pack)  - 76305-24
    • 1 - Shaft Spacer Plastic 6mm ID x 10mm OD x 2mm L (24 pack)  - 76306-24
    • 2 - 6mm Shaft Hub (4 pack)  - 76284-4
    • 2 - 32 Tooth Gear (2 pack)  - 76220-2
    • 1 - 64 Tooth Gear (2 pack)  - 76221-2
    • 2 - 128 Tooth Gear  - 76222
    • 1 - Rack & Pinion  - 76170
    • 1 - Multi-Mode Smart Servo  - 75002
    • 1 - M3 x 8mm Socket Head Cap Screw (pack of 100)  - 76200-100
    • 1 - M3 x 10mm Socket Head Cap Screw (pack of 100)  - 76201-100
    • 1 - M3 x 12mm Socket Head Cap Screw (pack of 100)  - 76202-100
    • 1 - M3 x 10mm Button Head Cap Screw (pack of 50)  - 76203-50
    • 1 - M3 Kep Nut (pack of 100)  - 76204-100
    • 1 - 25mm Standoff (12 pack)  - 76182-12
    • 1 - 48mm Standoff (12 pack)  - 76181-12
    MFR Part #: 70264
    $499.00
    In stock
